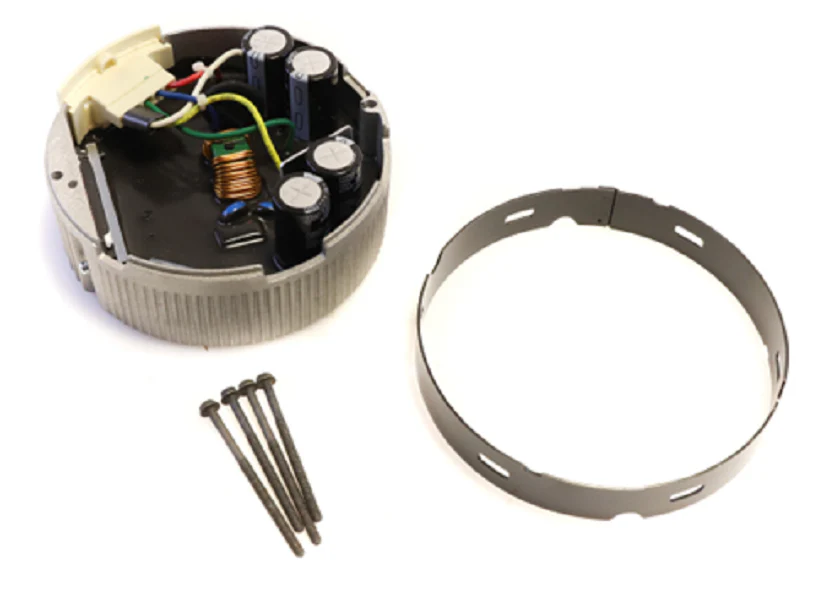

Trane MOD2209 Control
The Trane MOD2209 Control is a factory-programmed electronic motor control module designed specifically for ECM blower motors in high-efficiency Trane and American Standard furnaces and air handlers. As an OEM replacement part, this module is engineered to manage the complex torque and airflow requirements of variable speed motors, ensuring the system maintains precise CFM delivery across varying static pressures. This programmed electric motor control is compatible with 16-pin motor configurations and serves as a direct drop-in for MOD02209 and select 2.0/2.3 series ECMs. It eliminates the need for field programming by housing specific airflow coefficients and motor parameters calibrated to the original equipment’s data plate specifications.
For contractors, the Trane MOD2209 ensures seamless integration with the existing integrated furnace control (IFC) and thermostat interface. By regulating the electronically commutated motor, it optimizes energy consumption and enhances dehumidification cycles through accurate blower ramping. When diagnosing HVAC blower motor issues, replacing the module independently of the motor provides a cost-effective solution for electronic failure while maintaining OEM performance standards. Verify the 16-pin harness compatibility and confirm the specific software revision matches your air handler’s requirements for optimal communication and efficiency.
Key Benefits- Factory Programmed: Pre-loaded with specific Trane HVAC algorithms to ensure immediate plug-and-play functionality without manual calibration.
- Enhanced Efficiency: Precisely manages ECM motor speed to reduce energy draw and improve SEER/HSPF ratings for the overall system.
- System Reliability: Protects the blower motor from electrical stressors and ensures consistent airflow performance under varying duct loads.
- Cost-Effective Repair: Allows for the independent replacement of the motor interface module, avoiding the expense of a complete motor assembly.
Is the Trane MOD2209 compatible with newer 3.0 ECM motors?
No, this module is designed for older 2.0 and 2.3 series 16-pin ECM motors. It should not be used with 3.0 motors or those requiring a silver end-cap module.
Do I need specialized tools to program this control module in the field?
No, this item is a programmed motor control, meaning the manufacturer has already flashed it with the necessary parameters for specific residential furnace and air handler applications.
What are the signs that my current motor module has failed?
Common indicators include the blower motor not starting despite receiving high voltage and a 24V signal, or the motor "hunting" (intermittently ramping up and down) during a constant-call cycle.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
