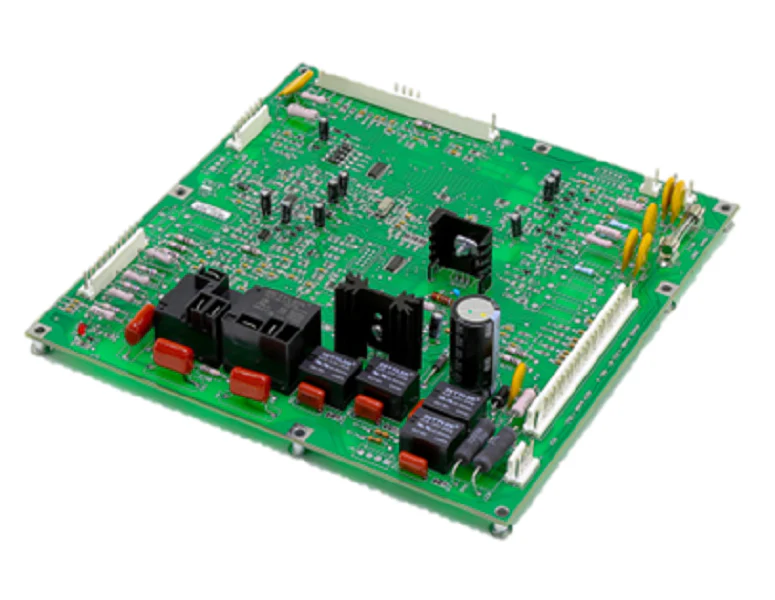

Trane MOD1802 Control Processor
The Trane MOD1802 (also referred to as MOD01802) is a critical Unitary Control Processor engineered for high-performance management of Trane and American Standard HVAC systems. As the central intelligence hub for commercial rooftop units, split systems, and heat pumps, this OEM control board utilizes advanced control algorithms to synchronize compressor sequencing, fan speeds, and refrigeration circuit safety monitoring. It is designed to interface seamlessly with Trane zone sensors and building automation protocols, including BACnet and Modbus, ensuring secondary equipment responds accurately to dynamic load requirements and environmental fluctuations.
For technicians in the field, the MOD1802 provides robust onboard diagnostics to simplify HVAC troubleshooting of complex operational faults. This unitary controller manages critical inputs from pressure transducers and temperature sensors to prevent refrigerant floodback or motor overheating. Whether you are performing a replacement for a failed CPU board in a ReliaTel system or upgrading a Voyager rooftop unit, this processor maintains the factory-standard operational logic necessary for optimal energy efficiency and system reliability.
Key Benefits:
- Broad Compatibility: Functions as the primary unitary control processor for a wide range of Trane rooftop units and split system controllers.
- Precision Logic: Employs advanced algorithms for precise temperature and humidity control, reducing component wear through optimized compressor cycling.
- System Protection: Includes integrated safety monitoring to detect low-pressure faults, high-limit trips, and communication errors across the control circuit.
- Seamless Integration: Supports standard communication modules for remote monitoring and BAS integration.
Common Questions:
- Does this board require programming upon installation? While the hardware is plug-and-play for specific unitary systems, the MOD1802 typically requires configuration or addressing to match the specific unit tonnage and options (economizer, electric heat, etc.) to ensure the onboard diagnostic codes are accurate.
- How do I troubleshoot a suspected board failure? Start by verifying 24VAC power supply at the terminals and checking for burnt circuits or corroded pins. Use a multimeter to check for communication signals between the MOD1802 and the zone sensor or thermostat.
- Will this replace older MOD series processors? The MOD1802 is the direct OEM replacement for several legacy Trane control processors; however, always verify the MPN and unit serial number to confirm firmware compatibility.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
