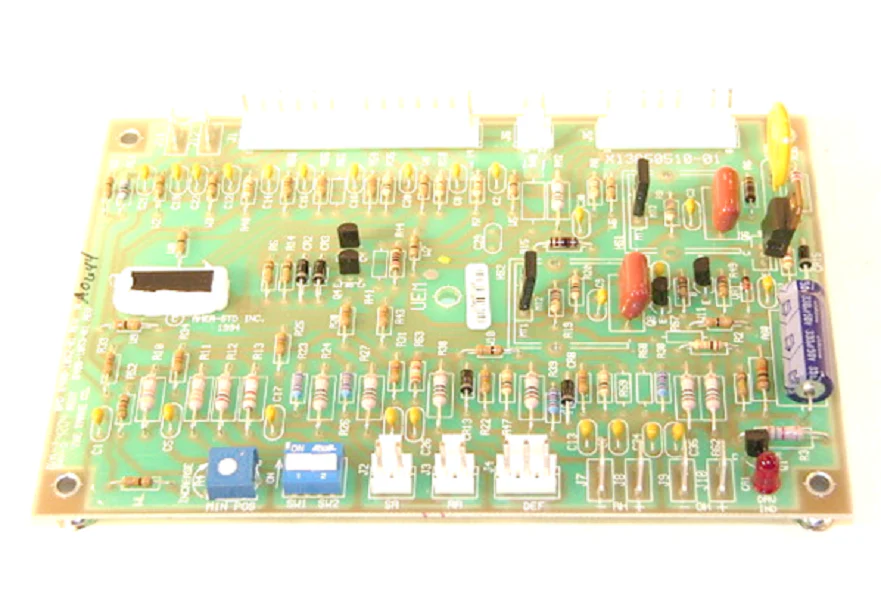

Trane MOD0145 Module
The Trane MOD0145 Module, specifically the Universal Economizer Module (UEM), is a critical field-serviceable component for commercial HVAC control systems using ReliaTel microprocessor platforms. This factory-authorized OEM part is engineered for high-performance economizer control and sensor integration on heavy-duty packaged units and commercial self-contained systems. It facilitates seamless communication between the building management system and various field devices, including temperature sensors and humidity monitors. By managing economizer dampers based on enthalpy or dry bulb temperatures, this ReliaTel communication module ensures precise outdoor air introduction for free cooling, significantly reducing compressor runtime in packaged cooling units. The MOD0145 is a direct drop-in for Trane economizer parts in TCD rooftop models, providing field-selectable configurations to meet specific site requirements. Its robust electronic design is built to withstand the thermal stress of industrial rooftop environments, maintaining system reliability across various HVAC automation protocols.
Key Benefits- OEM Precision: Direct replacement Trane UEM module designed for 100% compatibility with ReliaTel control boards and commercial rooftop units.
- Free Cooling Efficiency: Automates damper control for optimal outdoor air Intake, maximizing energy savings during favorable ambient conditions.
- Advanced Diagnostics: Built-in LED indicators assist technicians with rapid status identification and communication verification during troubleshooting.
- Sensor Integration: Supports multiple sensing types including enthalpy, dry bulb, and CO2 for comprehensive IAQ management and energy code compliance.
- Field Reliable: High-durability circuitry resists moisture and temperature fluctuations common in industrial mechanical rooms and rooftops.
What equipment is compatible with the MOD0145?
This module is primarily designed for Trane and American Standard packaged rooftop units, specifically those utilizing the ReliaTel control platform and economizer kits. It fits many high-efficiency TCD and Voyager series models.
Does this module require external programming?
As a factory-specified control module, it typically uses DIP switches or is auto-detected by the main ReliaTel processor once correctly wired into the communication bus, simplifying field commissioning.
How do I troubleshoot communication errors with this UEM?
Verify the low-voltage DC power supply from the main board and check the status LEDs on the module faceplate. Common issues often lie in sensor wiring or incorrect field configuration settings.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $695.98
-65%$695.98
$243.59Trane MOD0145 Module
