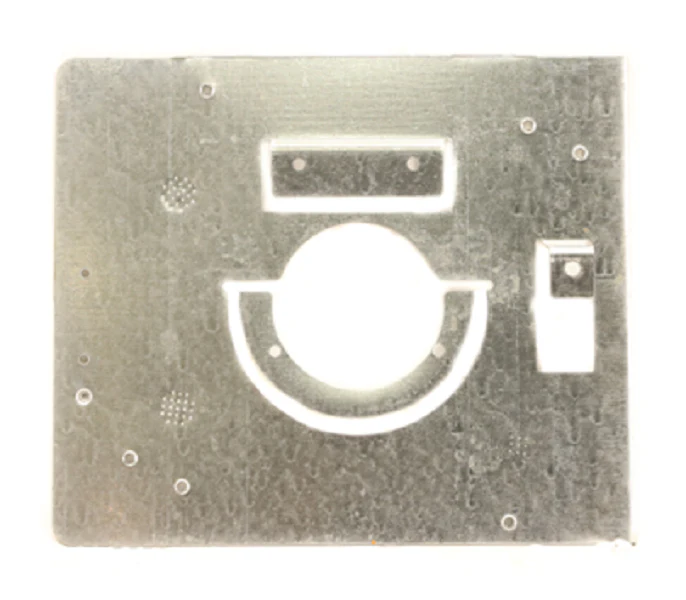

Trane MNT2266 Plate
The Trane MNT2266 Plate is a critical OEM replacement part engineered specifically for mounting induced draft motors in high-efficiency gas furnaces. Constructed from heavy-duty galvanized steel, this 15.5-inch inducer motor mounting plate provides the structural rigidity necessary to maintain precise motor alignment and prevent housing deformation. As a veteran technician knows, a secure fit is essential to mitigate vibration, noise, and resonance within the blower assembly, which directly impacts the service life of the inducer. This Trane furnace part, also identified under the updated part number MNT02266, is a direct fit for several 100k BTU and 80k BTU units, including the AUH1C100 and CUX1B080 series. When replacing a failed motor, inspecting the draft inducer mounting plate for corrosion or warping is a standard best practice to ensure the system meets static pressure requirements and maintains safe flue gas venting.
Key Benefits:- Precision Alignment: Engineered to original equipment manufacturer tolerances to ensure the induced draft motor sits perfectly flush against the collector box.
- Vibration Dampening: The galvanized steel construction absorbs operational harmonics, reducing audible decibel levels and preventing mechanical fatigue on the motor shaft.
- Corrosion Resistance: Treated to withstand the high-moisture environment common in condensing furnace applications where acidic condensate can compromise standard metals.
- Direct OEM Compatibility: Replaces discontinued MNT2266 and MNT2266B numbers without requiring field modifications or hole redrilling.
- What causes a mounting plate to fail? Constant heating and cooling cycles can lead to metal fatigue or warping, and moisture from the heat exchanger can cause pinhole corrosion, leading to air leaks that trip pressure switches.
- Is this plate compatible with American Standard furnaces? Yes, since Trane and American Standard share the same internal components, this plate fits equivalent American Standard horizontal and upflow furnaces.
- Does this include the gasket or mounting screws? This is the mounting plate only. It is highly recommended to apply a new high-temp silicone gasket or recovery gasket during installation to ensure a gas-tight seal.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
