Trane KIT18109 Control

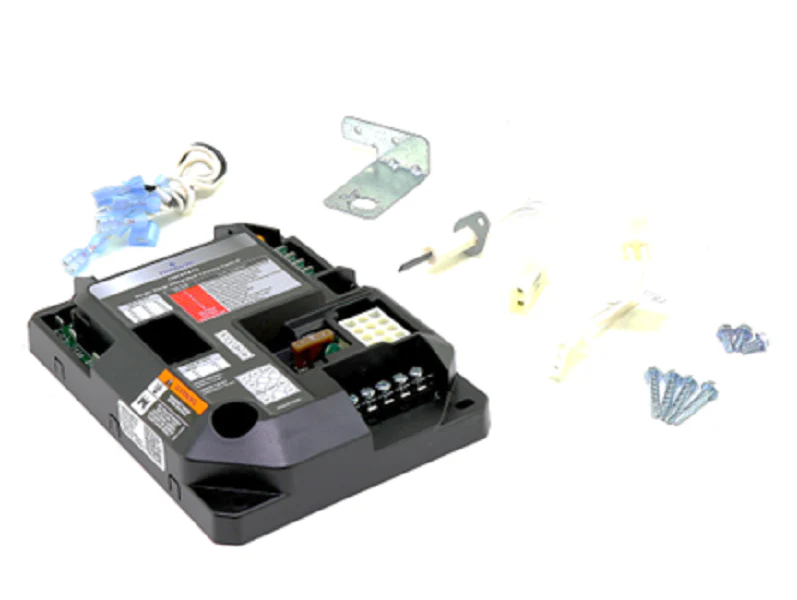

The Trane KIT18109 Control is a specialized 1Stg Furnace Control designed for precise single-stage gas furnace ignition and blower motor management. This integrated furnace control (IFC) board serves as a direct replacement for various residential HVAC units, ensuring reliable sequence of operation for the hot surface igniter, gas valve, and indoor fan motor. Engineered to withstand the thermal cycling typical of modern heat exchangers, the Trane furnace control board utilizes high-grade relays and logic circuits to monitor safety limit switches and flame rectification. When diagnosing furnace communication errors or ignition failures, this board provides the necessary diagnostic LED flash codes to streamline troubleshooting for field technicians. Its design prioritizes timing accuracy for inducer pre-purge and post-purge cycles, maintaining optimal combustion efficiency. Integrating the KIT18109 ignition module into a compatible Trane or American Standard system restores OEM-level performance, ensuring rigorous adherence to safety protocols and load demand response.
Key Benefits for Technicians- Universal pin-out compatibility ensures a direct mechanical fit for legacy single-stage Trane furnace chassis.
- Advanced flame sensing circuitry reduces nuisance lockouts caused by microamp fluctuations.
- Integrated on-board diagnostics via LED indicators allow for rapid fault identification during service calls.
- Robust construction resists voltage spikes and environmental contaminants common in attic or crawlspace installations.
- Precise blower timing logic optimizes airflow for both heating and cooling cycles to prevent coil freezing.
What are the symptoms of a failing KIT18109 control board?
Common indicators include intermittent failure of the hot surface igniter to energize, lack of 24V output to the gas valve, or the indoor blower motor failing to kick on after the heat exchanger warms up.
Does this board support variables-speed blowers or multi-stage gas valves?
No, the Trane KIT18109 is specifically engineered for 1stg (single-stage) furnaces. It operates standard PSC or fixed-speed blower motors and single-stage solenoid gas valves.
How do I verify a flame sensing issue with this module?
Ensure the flame sensor rod is clean and the furnace is properly grounded. Use a multimeter to verify a 1-5 microamp signal during the ignition trial to confirm the board is receiving the proper feedback signal.
