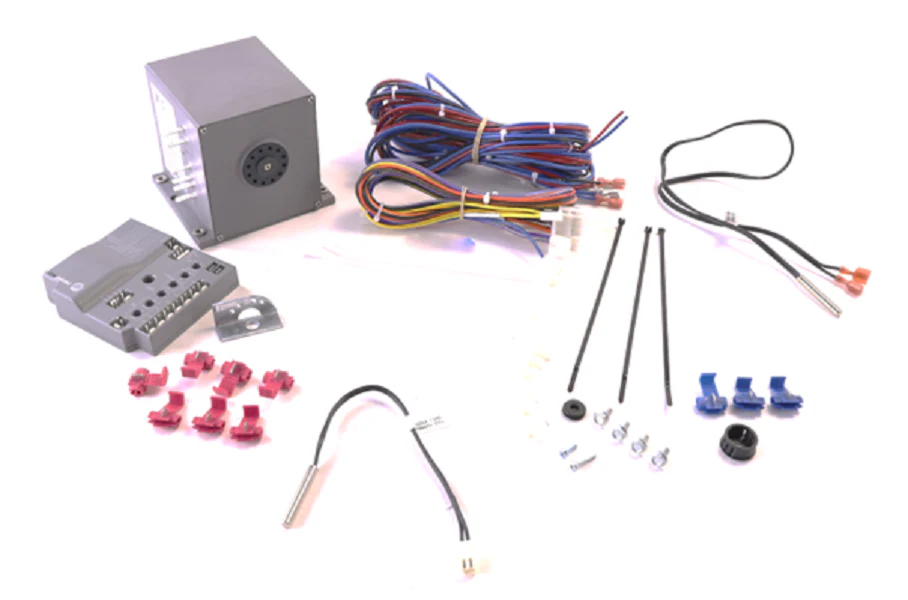

Trane KIT16682 Motor & Module
The Trane KIT16682 Motor & Module is a critical OEM replacement assembly designed to restore and maintain precise economizer functionality in commercial rooftop units (RTUs). This 24V CCW (counter-clockwise) kit serves as the direct replacement for the obsolete MOD1180, integrating a high-performance foot-mounted actuator with a sophisticated logic module. Engineered for American Standard and Trane gas/electric systems, the KIT16682 delivers 25 lb-in of torque over a 90-degree stroke, facilitating accurate modulation of outdoor and return air dampers. By optimizing free cooling and ensuring proper ventilation, this module reduces compressor run time and improves overall energy efficiency. The NEMA 1 plenum-rated housing and 2-10 VDC control signal integration allow for seamless field installation and calibration. For contractors troubleshooting damper drift or module failure, the Trane KIT16682 actuator provides the structural durability and electrical precision required for demanding HVACR environments.
Key Benefits- Direct OEM Compatibility: Specifically engineered to replace the obsolete Trane MOD1180 in select Trane and American Standard systems.
- Enhanced Efficiency: Precisely modulates air dampers to maximize free cooling cycles, lowering operational costs and mechanical wear.
- Precision Control: Utilizes a 2-10 VDC signal for accurate positioning over a full 90-second, 90-degree stroke angle.
- Robust Torque: Delivers 25 lb-in of force, ensuring reliable damper movement even in systems with high static pressure.
- Integrated Logic: The combined motor and module design simplifies the control sequence for outdoor air intake and power exhaust.
Is the KIT16682 compatible with my system if I currently have a MOD1180?
Yes, the KIT16682 is the official Trane replacement kit for the legacy MOD1180 economizer motor. It is designed to fit the same footprint and integrate with existing 24V wiring harnesses.
What rotation direction does this actuator utilize?
This specific model is a Counter-Clockwise (CCW) rotation unit. It is vital to verify the mechanical linkage requirements of your economizer dampers before installation to ensure proper travel direction.
Can I use this motor on a heat pump unit?
While commonly used on gas/electric rooftop units, compatibility depends on the specific harness and logic requirements. Certain heat pump configurations may require an additional relay accessory kit (such as the BAYRLAY006B) for full integration.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
