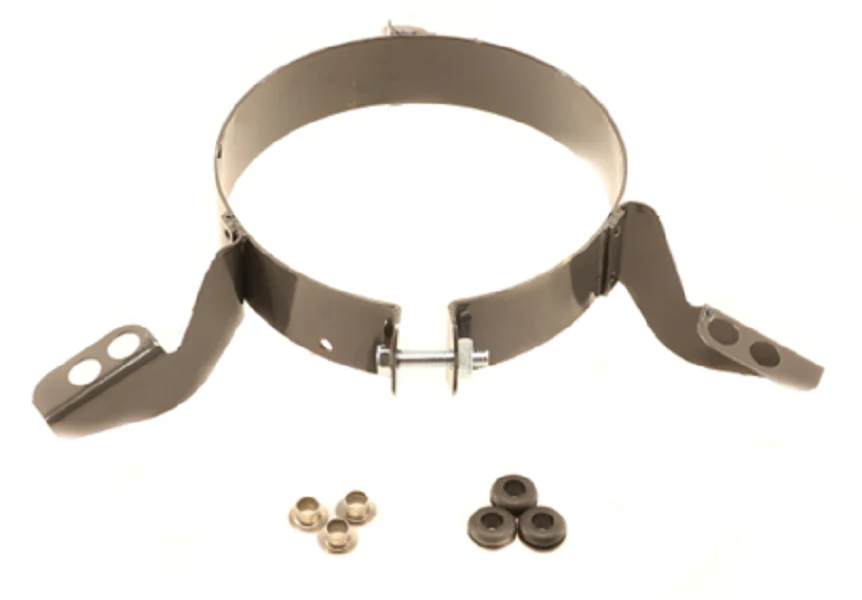

Trane KIT1052 Belly Band Kit
For service technicians working on Trane direct drive systems, the Trane KIT1052 Belly Band Kit (also identified as KIT01052) is the specified OEM solution for securing and stabilizing 48 frame motors. This high-durability mounting ring kit is engineered for a precise fit on 5.625-inch diameter motors commonly found in air-cooled chillers and commercial air handlers. The kit features a robust belly band mounting ring set equipped with three welded ears and a dual-hole configuration, allowing for flexible vibration isolation and secure mechanical anchoring. Utilizing this HVAC motor mount kit ensures proper shaft alignment and prevents the radial movement that leads to premature bearing wear in condenser and evaporator blower applications. By maintaining the motor frame 48 position under high torque cycles, this OEM replacement part maximizes the operational efficiency and integrity of the drive assembly. Integrating this factory-authorized belly band assembly during motor swaps is critical for field reliability and meeting strict system clearance tolerances.
Key Benefits- Precision Compatibility: Specifically designed for 5.625-inch diameter motors and 48 frame motor housings.
- Mechanical Stability: Three welded ears provide rigid mounting points to minimize longitudinal and radial vibration.
- Universal Fit: Features a dual-hole ear design to accommodate various bracket configurations in Trane HVAC equipment.
- Direct Drive Optimization: Ensures the fan blade or blower wheel remains centered within the orifice for peak airflow performance.
- OEM Reliability: Built to original factory specifications to replace the previous KIT1052 model seamlessly.
Is the KIT1052 compatible with non-Trane 48 frame motors?
While designed for Trane 48 frame motors with a 5.625-inch diameter, the universal welded ear configuration is compatible with most standard NEMA 48 frame direct drive motors used in the industry.
What is the primary difference between the KIT1052 and KIT01052?
The KIT01052 is the current production part number that directly replaces the older KIT1052 legacy number with the same dimensional specifications and mounting hole patterns.
Does this kit include the mounting bolts for the ears?
This kit typically includes the belly band and integrated ears; service technicians should retain or source high-grade hardware suitable for the specific bracket or bulkhead being utilized.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
