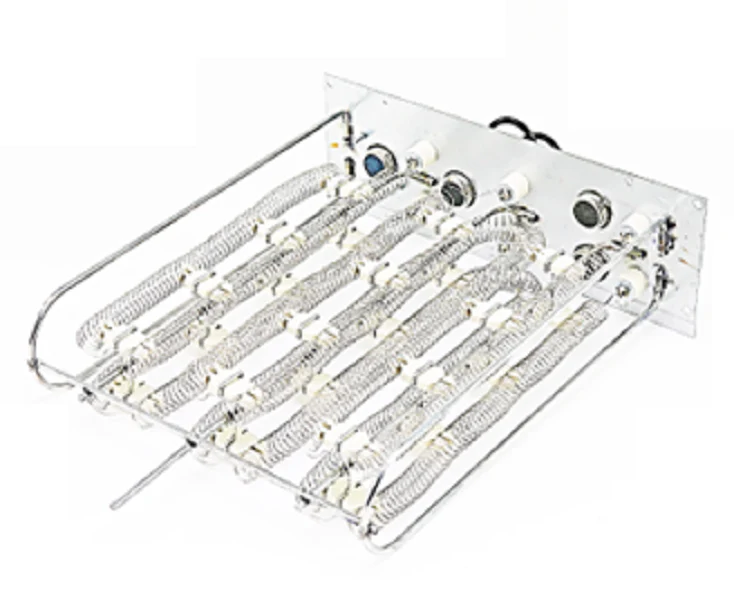

Trane HTR3529 Heater Element Assembly
The Trane HTR3529 Heater Element Assembly is a high-performance 6kW electric heat strip engineered for demanding commercial and industrial applications. This 240V 3-phase heater element delivers consistent thermal output, making it a critical component for process heating, air handling units, and space heating systems requiring 20,472 BTU/hr of supplemental heat. A direct replacement for the discontinued HTR3529, this assembly is now commonly superseded by the HTR03529 model, maintaining exact mechanical and electrical specifications for seamless field integration. Featuring heavy-duty resistive coils and a robust mounting frame, this HVAC heater assembly is built to withstand the rigorous cycling common in high-static environments. As a genuine OEM Trane replacement part, it ensures proper airflow clearance and electrical safety compliance. For technicians perform maintenance on Trane or American Standard equipment, this 6000-watt assembly provides the reliable resistive heat necessary to maintain setpoint integrity during extreme low-ambient conditions. Verify your existing heater kit wiring and breaker sizing to ensure compatibility with 3-phase power distribution.
Key Benefits- High-Capacity Heating: Delivers a full 6kW (6000 Watts) of heating power for rapid temperature recovery in large-scale HVAC systems.
- Three-Phase Efficiency: Optimized for 240V 3PH electrical configurations, ensuring balanced load distribution and reduced amperage draw per phase.
- Direct OEM Fit: Engineered as a precise mechanical substitute for the original HTR3529, eliminating the need for field modifications or bracket adjustments.
- Industrial-Grade Durability: Constructed with high-grade alloy elements designed for high-temperature resistance and extended service life in commercial air handlers.
- Safety Optimized: Built to meet strict OEM specifications for thermal limit protection and structural integrity under constant thermal expansion.
Is the HTR3529 compatible with single-phase power?
No, this specific assembly is designed strictly for 240V three-phase (3PH) power supplies. Installing this in a single-phase application will result in incorrect wattage output and potential electrical hazards.
What is the difference between HTR3529 and HTR03529?
The HTR03529 is the manufacturer-designated direct replacement for the HTR3529. All technical specs, including the 6kW rating and physical dimensions, remain identical to the original assembly.
Does this heater assembly include the limit switches?
Most Trane HTR3529 assemblies include the integrated thermal safety limits required for safe horizontal or vertical airflow operation. However, always inspect the existing unit's wiring harness for specific terminal compatibility.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
