Trane HTR13684 Heater Assembly

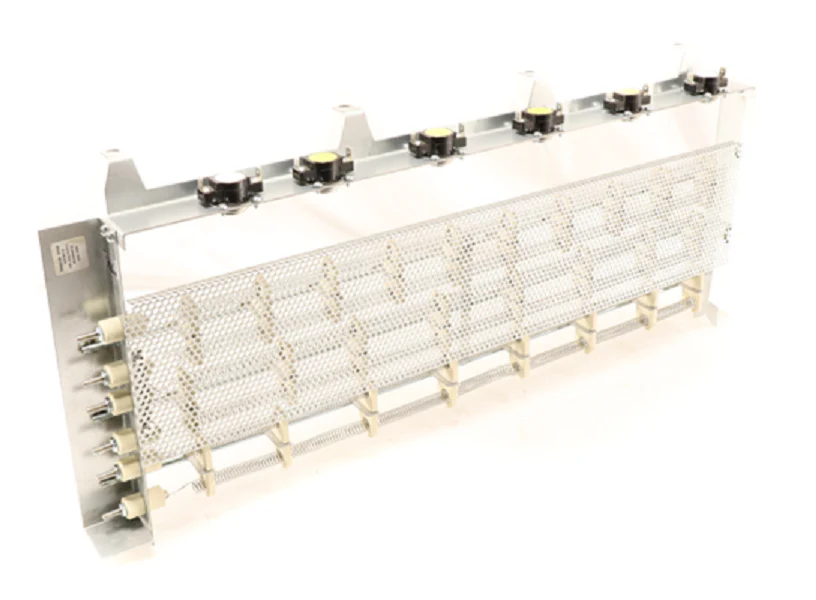

The Trane HTR13684 Heater Assembly is a critical 230V electric heater kit designed for field installation in compatible Trane and American Standard air handlers and packaged rooftop units. This OEM heater assembly provides reliable supplemental heat or primary heating in electric-only configurations, operating on 230V single-phase power. As a veteran-preferred part, the HTR13684 ensures exact physical fitment within the vestibule, utilizing standard HVAC wiring and a consistent Molex plug interface for seamless integration with existing low-voltage control harnesses. High-grade nichrome heating elements are spaced for optimal airflow, preventing localized hotspots and frequent high-limit trips. When replacing a burnt heat strip or upgrading a chilled water system, this assembly maintains the UL listing integrity of the original air handler. Proper installation requires verifying the unit's Minimum Circuit Ampacity (MCA) and ensuring the blower speed tap is correctly calibrated to handle the increased temperature rise across the coil.
Key Benefits for the Contractor- Direct OEM Replacement: Eliminates the clearance issues and mounting bracket modifications common with aftermarket HVAC heater kits.
- Plug-and-Play Control: Features a factory-wired polarized plug that connects directly to the unit's control box, reducing field labor and wiring errors.
- Overtemperature Protection: Integrated automatic reset thermal limits and potential fuse links provide essential safety redundancy during low-airflow events.
- Durable Construction: Built with heavy-duty galvanized steel housing to resist vibration and thermal expansion stress throughout the heating season.
Is the HTR13684 compatible with 208V systems?
Yes, this 230V heater assembly is rated for 208/240V operation. Note that total kW output will be slightly reduced when operating at 208V, and your circuit breaker selection should reflect these voltage-specific draws.
Do I need a separate power supply for this heater kit?
Compatibility depends on the air handler model. While many units support single-point power, larger kW heater installations may require a dual-circuit power entry kit or a high-voltage fuse block to comply with local electrical codes.
What causes recurring failures in heater assemblies?
The most common cause is restricted airflow due to dirty filters or undersized ductwork. Ensure the evaporator coil is clean and the fan motor is delivering the minimum CFM specified on the heater’s nameplate to prevent element oxidation.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $547.66
-65%$547.66
$191.68Trane HTR13684 Heater Assembly
The Trane HTR13684 Heater Assembly is a critical 230V electric heater kit designed for field installation in compatible Trane and American Standard air handlers and packaged rooftop units. This OEM heater assembly provides reliable supplemental heat or primary heating in electric-only configurations, operating on 230V single-phase power. As a veteran-preferred part, the HTR13684 ensures exact physical fitment within the vestibule, utilizing standard HVAC wiring and a consistent Molex plug interface for seamless integration with existing low-voltage control harnesses. High-grade nichrome heating elements are spaced for optimal airflow, preventing localized hotspots and frequent high-limit trips. When replacing a burnt heat strip or upgrading a chilled water system, this assembly maintains the UL listing integrity of the original air handler. Proper installation requires verifying the unit's Minimum Circuit Ampacity (MCA) and ensuring the blower speed tap is correctly calibrated to handle the increased temperature rise across the coil.
Key Benefits for the Contractor- Direct OEM Replacement: Eliminates the clearance issues and mounting bracket modifications common with aftermarket HVAC heater kits.
- Plug-and-Play Control: Features a factory-wired polarized plug that connects directly to the unit's control box, reducing field labor and wiring errors.
- Overtemperature Protection: Integrated automatic reset thermal limits and potential fuse links provide essential safety redundancy during low-airflow events.
- Durable Construction: Built with heavy-duty galvanized steel housing to resist vibration and thermal expansion stress throughout the heating season.
Is the HTR13684 compatible with 208V systems?
Yes, this 230V heater assembly is rated for 208/240V operation. Note that total kW output will be slightly reduced when operating at 208V, and your circuit breaker selection should reflect these voltage-specific draws.
Do I need a separate power supply for this heater kit?
Compatibility depends on the air handler model. While many units support single-point power, larger kW heater installations may require a dual-circuit power entry kit or a high-voltage fuse block to comply with local electrical codes.
What causes recurring failures in heater assemblies?
The most common cause is restricted airflow due to dirty filters or undersized ductwork. Ensure the evaporator coil is clean and the fan motor is delivering the minimum CFM specified on the heater’s nameplate to prevent element oxidation.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
