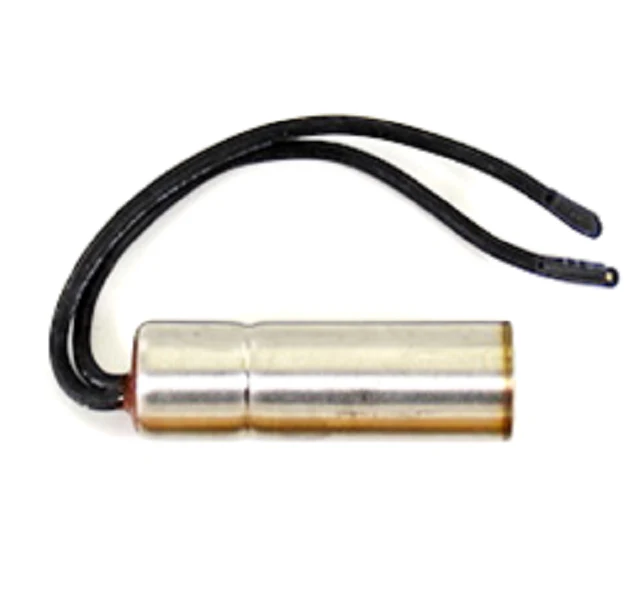

Trane HTR1225 Crankcase Heater
The Trane HTR1225 Crankcase Heater is a critical component for maintaining compressor reliability, specifically designed to prevent refrigerant migration during equipment off-cycles. This insertion type crankcase heater operates at 230 volts and provides 60 watts of regulated heat, ensuring the compressor oil stays above the refrigerant's saturation point. Maintaining this temperature differential prevents liquid refrigerant from condensing in the crankcase, which eliminates oil dilution and protects the internal bearings and scrolls from damage during flooded starts.
Built with a 3/4" diameter and a durable heating element, the HTR1225 is engineered for high-efficiency heat transfer directly into the oil sump. This model features 7" leads for secure electrical termination within the cabinet. As an OEM Trane replacement part, it is optimized for precise fitment in compatible air conditioning and heat pump compressors. Veteran technicians recognize that a functional compressor heater is the first line of defense against premature mechanical failure, especially in cooler climates or systems with long line sets where migration is more prevalent.
Key Benefits for the Technician:- Direct Oil Heating: The insertion type design provides more efficient thermal transfer to the lubricant than external belly-band heaters.
- Optimized Wattage: The 60W 240V rating provides balanced heat to keep oil viscous without overheating the lubricant or wasting energy.
- System Longevity: Actively prevents liquid slugging, a primary cause of compressor valve damage and motor burnout.
- Standardized Fit: Specifically sized with a 3/4 inch diameter for drop-in compatibility with designated Trane well ports.
- Can this be used on systems with single-pole contactors? Yes, but ensure the lead-wire configuration allows for continuous power when the compressor is idle to maintain the required oil temperature.
- Why choose an insertion heater over a belly band? Insertion heaters like the Trane HTR1225 provide faster recovery times and concentrate heat exactly where it is needed—inside the sump.
- Does this include a thermostat? No, this is a fixed-wattage element. For maximum efficiency, it can be integrated with a discharge line thermostat or auxiliary contact on the contactor.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $81.43
-65%$81.43
$28.50Trane HTR1225 Crankcase Heater
The Trane HTR1225 Crankcase Heater is a critical component for maintaining compressor reliability, specifically designed to prevent refrigerant migration during equipment off-cycles. This insertion type crankcase heater operates at 230 volts and provides 60 watts of regulated heat, ensuring the compressor oil stays above the refrigerant's saturation point. Maintaining this temperature differential prevents liquid refrigerant from condensing in the crankcase, which eliminates oil dilution and protects the internal bearings and scrolls from damage during flooded starts.
Built with a 3/4" diameter and a durable heating element, the HTR1225 is engineered for high-efficiency heat transfer directly into the oil sump. This model features 7" leads for secure electrical termination within the cabinet. As an OEM Trane replacement part, it is optimized for precise fitment in compatible air conditioning and heat pump compressors. Veteran technicians recognize that a functional compressor heater is the first line of defense against premature mechanical failure, especially in cooler climates or systems with long line sets where migration is more prevalent.
Key Benefits for the Technician:- Direct Oil Heating: The insertion type design provides more efficient thermal transfer to the lubricant than external belly-band heaters.
- Optimized Wattage: The 60W 240V rating provides balanced heat to keep oil viscous without overheating the lubricant or wasting energy.
- System Longevity: Actively prevents liquid slugging, a primary cause of compressor valve damage and motor burnout.
- Standardized Fit: Specifically sized with a 3/4 inch diameter for drop-in compatibility with designated Trane well ports.
- Can this be used on systems with single-pole contactors? Yes, but ensure the lead-wire configuration allows for continuous power when the compressor is idle to maintain the required oil temperature.
- Why choose an insertion heater over a belly band? Insertion heaters like the Trane HTR1225 provide faster recovery times and concentrate heat exactly where it is needed—inside the sump.
- Does this include a thermostat? No, this is a fixed-wattage element. For maximum efficiency, it can be integrated with a discharge line thermostat or auxiliary contact on the contactor.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
