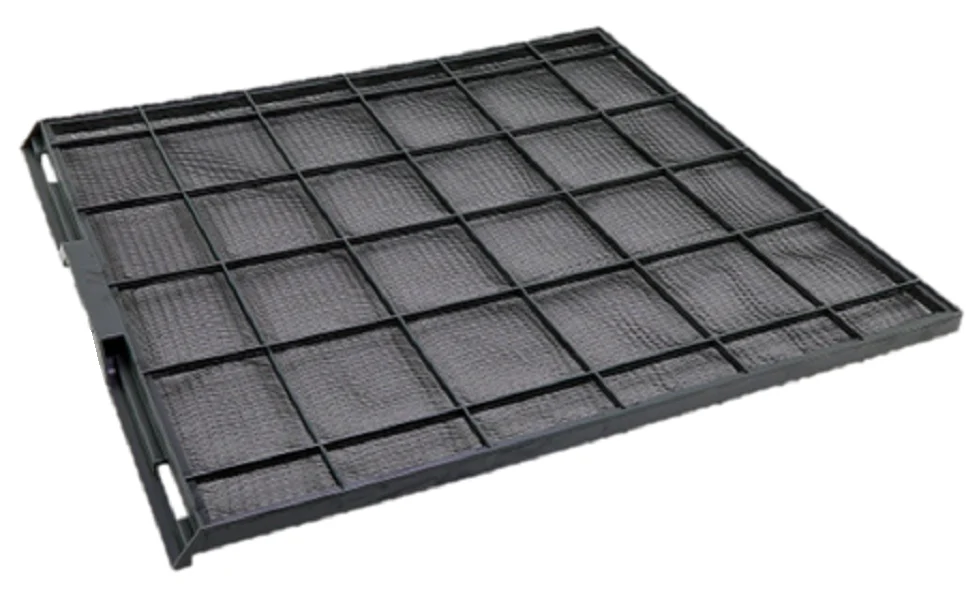

Trane FLR6466 Pre-Filter
The Trane FLR6466 Pre-Filter is a critical primary filtration component engineered for high-performance Trane CleanEffects Air Cleaner systems. Measuring exactly 24.19" x 26.07", this woven mesh pre-filter is the first line of defense in the TFD245 air handler cabinet. It is designed to mitigate the bypass of large particulate matter including dust, lint, and pet dander, ensuring the downstream electronic collection cells remain clear of heavy debris that causes premature loading and system pressure drops. As a genuine OEM replacement, this part is documented as a direct match for FLR06466 and serves as the factory-correct MERV 4 media for 24.5-inch upflow and sideflow furnace applications.
For technicians servicing American Standard AccuClean or Trane CleanEffects units, maintaining the FLR6466 is non-negotiable for system static pressure management. The synthetic poly media is built for durability under high velocity, but it requires regular extraction of captured contaminants to prevent airflow restriction. Utilizing genuine Trane filtration parts ensures that the filter frame seats properly within the cabinet, preventing air bypass which can lead to fouled evaporator coils and decreased heat exchange efficiency in residential and light commercial HVAC systems.
Key Benefits for HVAC Professionals:- Direct OEM Compatibility: Integrated precisely for Trane TFD245CLFR and American Standard AFD245 series air cleaners.
- Extended Component Life: Effectively shields expensive CleanEffects collection cells from large-diameter debris.
- Maintain System Static: Engineered to provide minimal resistance while maximizing particulate capture.
- Washable Mesh Design: Rugged synthetic construction allows for vacuuming or rinsing during routine maintenance cycles.
- High Temperature Tolerance: Rated for specialized environments with a 200° F temperature rating.
Is the FLR6466 interchangeable with the FLR06466?
Yes. In the Trane parts catalog, FLR6466 and FLR06466 are identical specifications with the same form, fit, and function. The part number may vary based on regional distribution or legacy nomenclature, but they utilize the same D801263P04 drawing specs.
What is the recommended cleaning interval for this pre-filter?
Citing standard field protocols for electronic air cleaners, the pre-filter should be inspected every 2 months. Systems with higher pollutant loads from pets or manufacturing dust may require more frequent vacuuming of the woven mesh to maintain optimal HVAC system efficiency.
How do I verify the correct size for my air handler?
Confirm your cabinet width. This 24.19L x 26.07W pre-filter is specifically for 24.5-inch wide cabinets. If you are working with a 17.5-inch or 21-inch cabinet, this specific model will not fit the track.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
