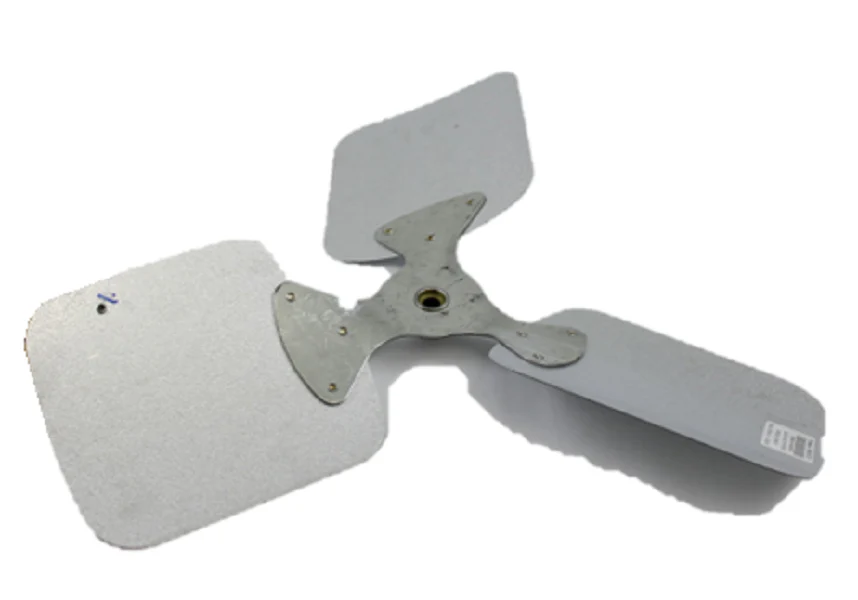

Trane FAN3045 Fan Blade
The Trane FAN3045 Fan Blade is a critical replacement component designed for high-performance HVAC condenser units. Engineered with a 22-inch diameter and a 26-degree pitch, this 3-blade aluminum fan is optimized for precise airflow management in residential and commercial cooling systems. It features a 1/2-inch bore and is designed for counter-clockwise (CCW) rotation, ensuring a direct drop-in fit for compatible Service First and American Standard equipment. By maintaining the specific blade angle required for your unit, this OEM-quality part prevents motor strain and ensures the condenser motor operates within its intended RPM range, maximizing heat transfer efficiency during high-load cycles.
Key Benefits:
- Optimized Static Pressure: The 26-degree pitch allows for maximum air displacement (CFM) while minimizing turbulence and operational noise.
- Direct OEM Compatibility: Replaces FAN03045 and FAN-3045, ensuring the hub depth and 1/2" bore align perfectly with the motor shaft for a balanced installation.
- Corrosion-Resistant Construction: Heavy-duty aluminum blades withstand harsh outdoor environmental conditions, preventing structural fatigue and imbalance.
- System Efficiency: Restoring the correct fan blade geometry prevents condenser motor overheating and maintains proper system head pressure.
Common Questions:
How do I verify the rotation of the FAN3045?
This blade is rated for CCW rotation. When looking at the discharge side (typically the top of the condenser), the blade must spin counter-clockwise to pull air through the coils effectively. Installing a blade with incorrect rotation will lead to immediate system high-pressure trips.
What causes a 22-inch fan blade to fail?
Common failure points include hairline cracks at the hub, bent blades from debris, or oxidation that causes imbalance. An imbalanced fan blade will lead to bearing failure in your condenser fan motor.
Does this fit all 22" Trane units?
While 22" is a common diameter, you must verify the 26-degree pitch and 1/2" bore size. Using an incorrect pitch will change the amperage draw on your motor, potentially leading to premature motor failure.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
