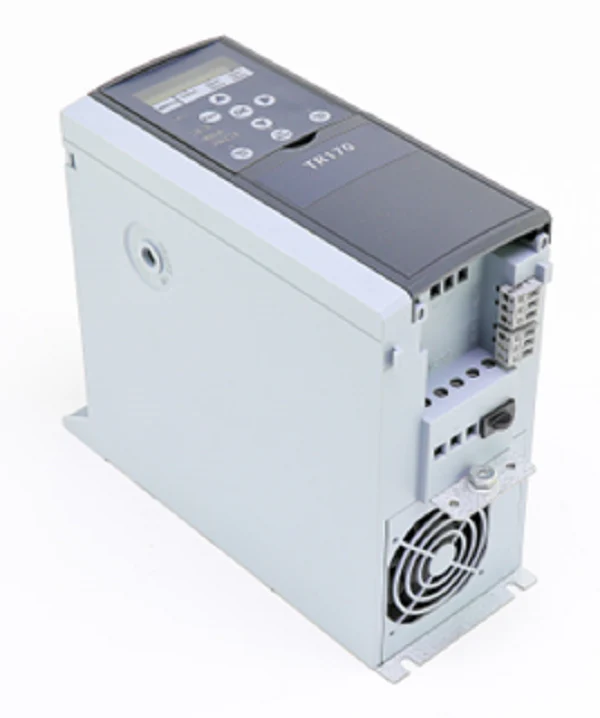

Trane DRV3114 Drive
The Trane DRV3114 Variable Frequency Drive is a high-performance 1.5HP AC drive engineered for precise motor control in commercial HVAC applications. Operating at 460VAC 3-phase power, this VFD is designed to optimize energy efficiency by modulating motor speed based on real-time load requirements. Built with a robust IP20 enclosure, the DRV3114 serves as a critical component for maintaining system air balance and extending the operational life of HVAC blower motors and pumps. This drive delivers a steady output current of 3.4A to 3.7A depending on line voltage, ensuring stable torque across various frequencies. Technical personnel will appreciate the internal diagnostics and integration capabilities with Trane building automation systems, facilitating seamless performance monitoring. When replacing legacy motor controllers, this 460V variable speed drive provides the necessary voltage-to-frequency ratio control to prevent motor overheating and reduce mechanical stress during start-up sequences.
Key Benefits- Energy Efficiency: Maximizes power savings by utilizing variable speed control to match motor output with system demand.
- System Longevity: Reduces electrical inrush current and mechanical wear on Trane HVAC replacement parts.
- Compact Protection: Features an IP20 rated chassis, suitable for clean-air mounting within control cabinets.
- Precise Modulation: Supports fine-tuned acceleration and deceleration ramps to prevent water hammer or duct pressure spikes.
What is the maximum amperage for the DRV3114?
This 1.5HP drive is rated for an output current of approximately 3.7A at 380-440V and 3.4A at 441-480V.
Can this drive be used for constant torque applications?
While primarily optimized for centrifugal loads like fans and pumps, the Trane DRV3114 provides reliable V/Hz control for various 1.5HP 460V motor configurations.
Does this unit include a bypass panel?
No, the DRV3114 is a standalone drive and does not include an integrated bypass configuration.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
