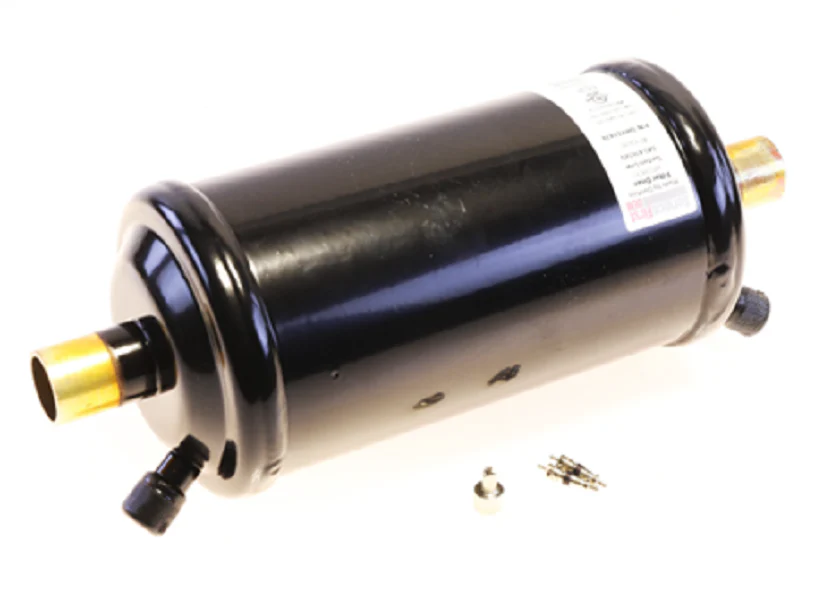

Trane DHY1478 Drier
The Trane DHY1478 Suction Line Drier is a high-capacity filtration solution engineered for heavy-duty HVACR systems up to 7.5 tons. Designed specifically for the suction side to protect the compressor from harmful particulates, this 3/4 inch ODF drier utilizes a 41 cubic inch desiccant volume to neutralize acidic moisture and trap solid contaminants like copper shavings or carbon scale. Whether you are performing a standard system service or managing critical HVAC compressor burnout cleanup, the DHY1478 filter drier provides the high-flow performance necessary to maintain system integrity without inducing excessive pressure drop. Experienced technicians rely on this OEM Trane replacement part for its precise 3/4" ODF connection and robust construction, ensuring compatibility and long-term reliability in commercial and large residential applications. Integrating a suction line filter is a professional standard for protecting expensive equipment after the refrigeration circuit has been opened to the atmosphere.
Key Benefits- Enhanced Compressor Protection: High-density desiccant core effectively captures acid, moisture, and debris before they reach the compressor.
- Optimized Flow Rate: Specifically sized for 7.5 ton systems to ensure minimal pressure drop and maximum system efficiency.
- Durable Construction: Features a corrosion-resistant finish designed to withstand the condensation common on refrigerant suction lines.
- Standard Fitting: 3/4 inch ODF (solder) connections provide a reliable, leak-free interface with standard copper tubing.
When should the Trane DHY1478 be used instead of a liquid line drier?
While liquid line driers are standard for moisture removal, this 7.5 ton suction drier is essential for system cleanups following a motor burnout or when there is evidence of acid and solid contaminants that could damage the compressor valves.
Is the DHY1478 a permanent or temporary filter?
In compressor burnout cleanup scenarios, it is standard practice to install the drier for 48 to 72 hours to trap contaminants. If the pressure drop across the DHY1478 exceeds 2 psi, it should be replaced or removed once the system test shows no remaining acid.
Can this drier be installed in any orientation?
For maximum efficiency and oil return, it is recommended to install the drier in a vertical position with flow-down, though horizontal installation is acceptable if the flow arrow on the DHY1478 housing is strictly followed.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $118.47
-65%$118.47
$41.46Trane DHY1478 Drier
The Trane DHY1478 Suction Line Drier is a high-capacity filtration solution engineered for heavy-duty HVACR systems up to 7.5 tons. Designed specifically for the suction side to protect the compressor from harmful particulates, this 3/4 inch ODF drier utilizes a 41 cubic inch desiccant volume to neutralize acidic moisture and trap solid contaminants like copper shavings or carbon scale. Whether you are performing a standard system service or managing critical HVAC compressor burnout cleanup, the DHY1478 filter drier provides the high-flow performance necessary to maintain system integrity without inducing excessive pressure drop. Experienced technicians rely on this OEM Trane replacement part for its precise 3/4" ODF connection and robust construction, ensuring compatibility and long-term reliability in commercial and large residential applications. Integrating a suction line filter is a professional standard for protecting expensive equipment after the refrigeration circuit has been opened to the atmosphere.
Key Benefits- Enhanced Compressor Protection: High-density desiccant core effectively captures acid, moisture, and debris before they reach the compressor.
- Optimized Flow Rate: Specifically sized for 7.5 ton systems to ensure minimal pressure drop and maximum system efficiency.
- Durable Construction: Features a corrosion-resistant finish designed to withstand the condensation common on refrigerant suction lines.
- Standard Fitting: 3/4 inch ODF (solder) connections provide a reliable, leak-free interface with standard copper tubing.
When should the Trane DHY1478 be used instead of a liquid line drier?
While liquid line driers are standard for moisture removal, this 7.5 ton suction drier is essential for system cleanups following a motor burnout or when there is evidence of acid and solid contaminants that could damage the compressor valves.
Is the DHY1478 a permanent or temporary filter?
In compressor burnout cleanup scenarios, it is standard practice to install the drier for 48 to 72 hours to trap contaminants. If the pressure drop across the DHY1478 exceeds 2 psi, it should be replaced or removed once the system test shows no remaining acid.
Can this drier be installed in any orientation?
For maximum efficiency and oil return, it is recommended to install the drier in a vertical position with flow-down, though horizontal installation is acceptable if the flow arrow on the DHY1478 housing is strictly followed.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
