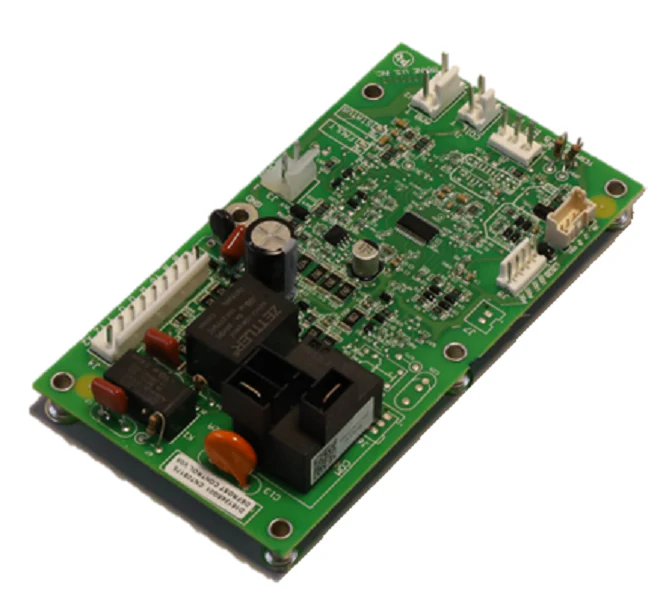

Trane CNT8175 Control Board
As a seasoned technician, you know that a failed defrost cycle during a deep freeze can lead to irreversible compressor slugging. The Trane CNT8175 Control Board (also identified as CNT08175) is the direct OEM replacement control board designed to manage complex adaptive defrost logic in high-efficiency Trane and American Standard heat pump systems. This 24V single-phase module monitors critical inputs from the ambient and coil temperature sensors to execute precise defrost timing based on a calculated delta-T, preventing excessive ice buildup without wasting energy on unnecessary cycles. Field-tested for durability, this board features a 10A current rating and integrated LED diagnostics to streamline troubleshooting on the job site. When replacing an existing Trane defrost board, ensuring the correct pin configuration for the low-pressure cutout (LPCO) and sensor plugs is vital to avoid fault codes. Using a genuine HVAC replacement part like the CNT8175 ensures consistent 24V signaling to the reversing valve and heat strip contactors, maintaining optimal heat transfer efficiency throughout the heating season.
Key Benefits for Technicians:- Precise Defrost Timing: Utilizes adaptive logic to monitor outdoor coil temperatures, ensuring the unit only initiates defrost when necessary to maintain airflow.
- Direct OEM Compatibility: Built to exact Trane specifications, fitting models like 4WCC4048 and 4TWR4060 without requiring field modifications.
- On-Board Diagnostics: Features an integrated LED indicator to quickly identify fault codes, such as sensor failures or short-cycle events.
- System Protection: Includes dedicated terminals for low-pressure (LPCO) and high-pressure switches to prevent compressor damage during extreme operating conditions.
- Standardized Voltage: Operates on a standard 24V control circuit with a 10A capacity, making it a drop-in replacement for older CNT07482 versions.
- How do I troubleshoot a 6-code on this board? A "6" flash typically indicates that defrost cycles are occurring too close together. Check the outdoor coil sensor resistance and ensure the ambient probe isn't sensing recirculated air.
- What sensors are required for this module? The board relies on a 10k ohm outdoor ambient sensor and a coil temperature sensor. Always verify sensor resistance against a temperature chart before condemning the board.
- Will this board work with 240V systems? Yes, while the control circuit is 24V, it is designed to manage the contactors of 208/230V single-phase outdoor units.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $111.12
-65%$111.12
$38.89Trane CNT8175 Control Board
