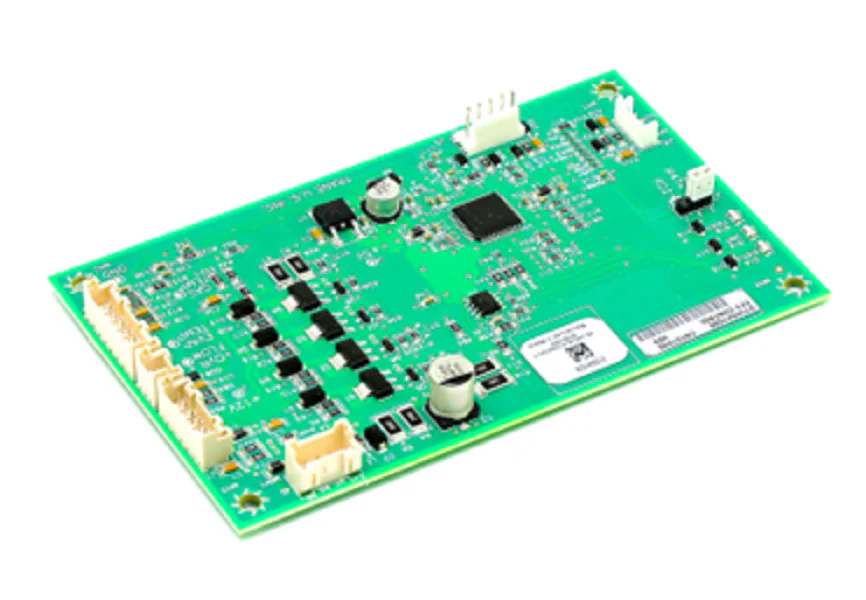

Trane CNT7690 Control Board
The Trane CNT7690 Control Board (OEM part # CNT07690) is a critical Electronic Valve Control (EVC) assembly designed for precise management of Electronic Expansion Valves (EEV) in high-refinement HVAC systems. This Ctrl Brd Assy serves as the primary logic interface for Trane air handlers including the TAM7, TAM8, TAM9, and TAMGB series. By processing real-time data from evaporator temperature sensors and thermostat logic, this board ensures optimal liquid refrigerant flow, maximizing system efficiency and preventing liquid slugging in the compressor.
For field technicians, the Trane CNT07690 provides essential diagnostic capabilities through its onboard LED indicators, allowing for rapid identification of communication faults or valve positioning errors. When performing a service replacement, ensure the J7 jumper is correctly configured to match the specific refrigerant type of the unit. This OEM Trane control board replaces several legacy versions, including CNT6189, CNT6607, and CNT7508, maintaining physical compatibility with Service First standards while improving signal response for air handler performance.
Key Benefits for Contractors:- Precise EEV Regulation: Manages the electronic expansion valve position to maintain exact superheat levels across varying load conditions.
- Broad Series Compatibility: Direct OEM replacement for TAM series air handlers, ensuring seamless integration with existing low-voltage wiring.
- Onboard Diagnostics: Features status LEDs to troubleshoot EEV failure, sensor issues, and power supply interruptions without external tools.
- Legacy Supersession: Consolidates multiple older part numbers into a single, high-reliability electronic valve control solution.
What are the symptoms of a faulty Trane CNT7690?
Technicians often encounter flashing error codes indicating an EEV stall, erratic suction pressure, or the system remaining in a unit fault state that prevents the blower from initiating the cooling cycle.
Does this board require any field programming?
While the board is pre-programmed, the J7 jumper must be set to the correct refrigerant profile (e.g., R-410A) as specified in the Trane installation guide to ensure accurate valve scaling.
Can I use this for American Standard models?
Yes, this Service First component is compatible with both Trane and American Standard air handlers that utilize the electronic expansion valve logic found in the TAM platform.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $179.74
-65%$179.74
$62.91Trane CNT7690 Control Board
The Trane CNT7690 Control Board (OEM part # CNT07690) is a critical Electronic Valve Control (EVC) assembly designed for precise management of Electronic Expansion Valves (EEV) in high-refinement HVAC systems. This Ctrl Brd Assy serves as the primary logic interface for Trane air handlers including the TAM7, TAM8, TAM9, and TAMGB series. By processing real-time data from evaporator temperature sensors and thermostat logic, this board ensures optimal liquid refrigerant flow, maximizing system efficiency and preventing liquid slugging in the compressor.
For field technicians, the Trane CNT07690 provides essential diagnostic capabilities through its onboard LED indicators, allowing for rapid identification of communication faults or valve positioning errors. When performing a service replacement, ensure the J7 jumper is correctly configured to match the specific refrigerant type of the unit. This OEM Trane control board replaces several legacy versions, including CNT6189, CNT6607, and CNT7508, maintaining physical compatibility with Service First standards while improving signal response for air handler performance.
Key Benefits for Contractors:- Precise EEV Regulation: Manages the electronic expansion valve position to maintain exact superheat levels across varying load conditions.
- Broad Series Compatibility: Direct OEM replacement for TAM series air handlers, ensuring seamless integration with existing low-voltage wiring.
- Onboard Diagnostics: Features status LEDs to troubleshoot EEV failure, sensor issues, and power supply interruptions without external tools.
- Legacy Supersession: Consolidates multiple older part numbers into a single, high-reliability electronic valve control solution.
What are the symptoms of a faulty Trane CNT7690?
Technicians often encounter flashing error codes indicating an EEV stall, erratic suction pressure, or the system remaining in a unit fault state that prevents the blower from initiating the cooling cycle.
Does this board require any field programming?
While the board is pre-programmed, the J7 jumper must be set to the correct refrigerant profile (e.g., R-410A) as specified in the Trane installation guide to ensure accurate valve scaling.
Can I use this for American Standard models?
Yes, this Service First component is compatible with both Trane and American Standard air handlers that utilize the electronic expansion valve logic found in the TAM platform.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
