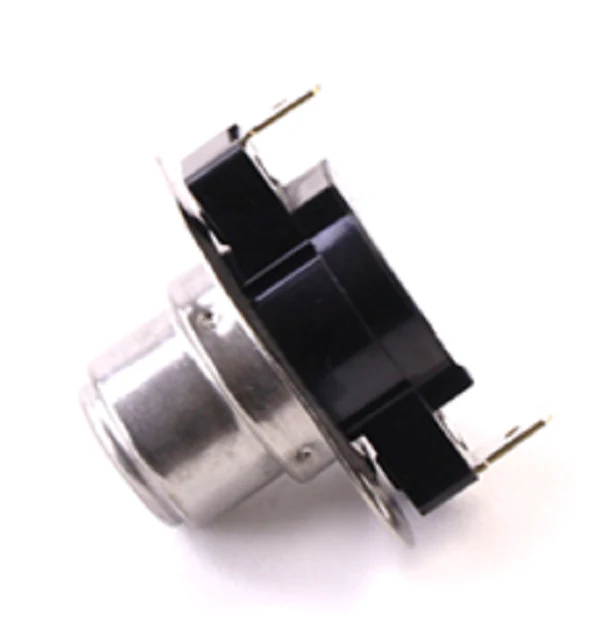

Trane CNT7660 Limit Switch
As a seasoned technician, you know that a tripped limit is rarely just a bad part; it is a symptom of airflow restriction or a failing blower. However, when the logic board throws a four-flash code on an XR90 or RTU, the Trane CNT7660 Limit Switch is your primary diagnostic point. This genuine OEM Trane replacement part is a critical safety component designed to monitor plenum temperatures and prevent heat exchanger damage. Featuring an L120-30F temperature rating, this switch is calibrated to open the circuit at 120°F and reset once the temperature drops by a 30°F differential. Unlike generic alternatives, this manual reset limit switch utilizes a positive snap-action mechanism to ensure crisp electrical breaks and reliable furnace safety circuit continuity. When troubleshooting short-cycling or "no heat" calls, verifying the 600VAC, 15A electrical rating and the physical integrity of the disk is essential for a permanent fix in commercial and residential HVAC applications.
Key Benefits- OEM Precision: Specifically engineered for Trane and American Standard equipment to maintain factory safety specifications.
- Snap-Action Reliability: High-quality limit switch/thermostat construction prevents arcing and ensures consistent HVAC temperature regulation.
- Direct Fit: Replaces factory CNT07660 and L120-30F components without requiring bracket modification or wire splicing.
- Broad Compatibility: Integrated into various residential furnaces and commercial rooftop units (RTU) to prevent overheating.
How do I verify if the CNT7660 is the cause of my four-flash error code?
With power disconnected, use a multimeter to check for continuity across the terminals while the system is cool. If you find high resistance or an open circuit at room temperature, the switch is likely defective or requires a manual reset.
Will this L120-30F switch work in place of a different temperature-rated limit?
No. You must always match the L-rating (Open) and the F-rating (Differential) exactly to the manufacturer's plate to ensure the system shuts down before reaching dangerous heat exchanger temperatures.
What causes this limit switch to trip frequently?
Frequent tripping is usually caused by restricted airflow. Check for a clogged merv-rated filter, a slipping blower belt, a failing capacitor, or blocked return air registers before replacing the switch.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $63.59
-65%$63.59
$22.26Trane CNT7660 Limit Switch
As a seasoned technician, you know that a tripped limit is rarely just a bad part; it is a symptom of airflow restriction or a failing blower. However, when the logic board throws a four-flash code on an XR90 or RTU, the Trane CNT7660 Limit Switch is your primary diagnostic point. This genuine OEM Trane replacement part is a critical safety component designed to monitor plenum temperatures and prevent heat exchanger damage. Featuring an L120-30F temperature rating, this switch is calibrated to open the circuit at 120°F and reset once the temperature drops by a 30°F differential. Unlike generic alternatives, this manual reset limit switch utilizes a positive snap-action mechanism to ensure crisp electrical breaks and reliable furnace safety circuit continuity. When troubleshooting short-cycling or "no heat" calls, verifying the 600VAC, 15A electrical rating and the physical integrity of the disk is essential for a permanent fix in commercial and residential HVAC applications.
Key Benefits- OEM Precision: Specifically engineered for Trane and American Standard equipment to maintain factory safety specifications.
- Snap-Action Reliability: High-quality limit switch/thermostat construction prevents arcing and ensures consistent HVAC temperature regulation.
- Direct Fit: Replaces factory CNT07660 and L120-30F components without requiring bracket modification or wire splicing.
- Broad Compatibility: Integrated into various residential furnaces and commercial rooftop units (RTU) to prevent overheating.
How do I verify if the CNT7660 is the cause of my four-flash error code?
With power disconnected, use a multimeter to check for continuity across the terminals while the system is cool. If you find high resistance or an open circuit at room temperature, the switch is likely defective or requires a manual reset.
Will this L120-30F switch work in place of a different temperature-rated limit?
No. You must always match the L-rating (Open) and the F-rating (Differential) exactly to the manufacturer's plate to ensure the system shuts down before reaching dangerous heat exchanger temperatures.
What causes this limit switch to trip frequently?
Frequent tripping is usually caused by restricted airflow. Check for a clogged merv-rated filter, a slipping blower belt, a failing capacitor, or blocked return air registers before replacing the switch.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
