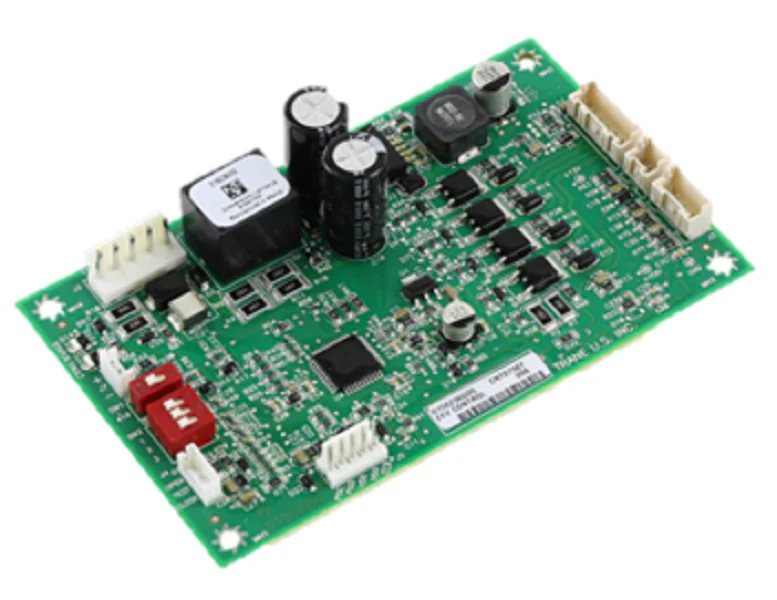

Trane CNT7507 Control Board Assembly
The Trane CNT7507 Control Board Assembly is a high-precision OEM refrigerant metering controller designed to manage the Electronic Expansion Valve (EEV) within compatible Trane and American Standard HVAC systems. As a direct factory replacement for legacy part numbers CNT06554, CNT06188, and CNT7054, this assembly is critical for maintaining accurate superheat levels and optimizing refrigerant flow. By utilizing advanced stepper motor control logic, the CNT7507 ensures the EEV modulates correctly to prevent liquid floodback and maximize evaporator efficiency in both residential air handlers and light commercial furnaces.
For field technicians, this EEP control circuit board streamlines troubleshooting with integrated diagnostic capabilities. It supports stepper motor homing and manual test modes to verify valve operation during startup or service calls. Replacing a faulty CNT7507 board is often the necessary solution when encountering diagnostic codes related to EEV restrictions or temperature sensor communication failures. This Trane replacement part provides the specific voltage signals required to drive the expansion valve needle precisely, ensuring your system maintains the tight temperature tolerances expected from high-efficiency variable speed HVAC equipment.
Key Benefits
- Precise EEV Modulation: Directly drives the electronic expansion valve to maintain optimal refrigerant saturation and system efficiency.
- Universal Replacement: Serves as the direct manufacturer-specified upgrade for discontinued models CNT06554 and CNT06188.
- System Protection: Enhances compressor reliability by preventing liquid refrigerant from exiting the evaporator coil through accurate superheat management.
- Diagnostic Support: Includes specific pins for "test," "open," and "close" functions to facilitate rapid field HVAC troubleshooting.
- Factory-Authorized Fit: Genuine Trane OEM part ensures pin-for-pin compatibility and proper mounting without the need for harness modifications.
Common Questions
Is the CNT7507 compatible with R-410A systems?
Yes, this HVAC control board is engineered for use with modern high-pressure refrigerants including R-410A within compatible air handlers and furnaces.
Does this board replace the CNT06554 exactly?
The Trane CNT7507 is the official direct replacement for the CNT06554. It maintains the same form factor and electrical specifications for a seamless swap.
What are the symptoms of a failing EEV control board?
Common indicators include the system running constantly without reaching setpoint, frozen evaporator coils, or specific fault codes on the main unit controller indicating an expansion valve communication error.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $205.18
-65%$205.18
$71.81Trane CNT7507 Control Board Assembly
