Trane CNT7230 Module

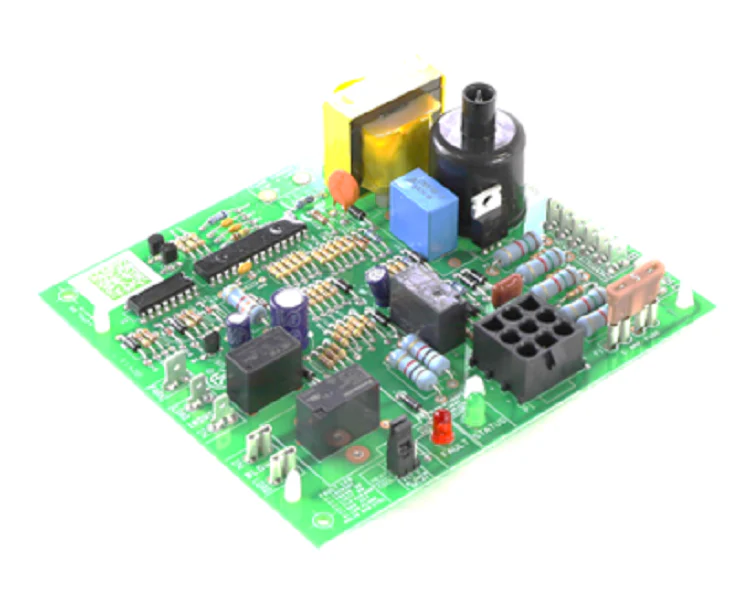

The Trane CNT07230 is a heavy-duty single-stage direct spark ignition (DSI) module engineered for precise control over the gas ignition sequence in residential and light commercial heating systems. As a veteran-grade OEM replacement part, this controller manages the trial-for-ignition period, spark generation, and continuous flame monitoring to ensure safe and efficient burner operation. The CNT07230 module is designed to integrate seamlessly with Trane American Standard packaged units and furnaces, utilizing a sophisticated microprocessor to detect flame presence and initiate a safety lockout if ignition fails or signal loss occurs. This direct spark ignition control eliminates the need for a standing pilot, reducing gas consumption and improving overall system reliability. For technicians performing field service, this module provides the standard 24V interface and multi-pin connectivity required for rapid installation and troubleshooting. When replacing a faulty gas furnace ignition board, ensuring the high-tension lead and ground connections are secure is critical to prevent intermittent spark issues and nuisance lockouts.
Key Benefits for Technicians- OEM Compatibility: Specifically designed as a direct replacement for Trane American Standard models like the 4YCC4030 and 4YCC4060 series.
- Enhanced Safety Logic: Integrated flame sensing technology ensures immediate gas shutoff upon flame failure to prevent combustion hazards.
- Durable Construction: Built to withstand the thermal cycling and vibration common in rooftop packaged units and split systems.
- Efficient Ignition: High-energy direct spark delivery provides reliable burner starts even in cold-start environments.
- Streamlined Diagnostics: Simplifies the troubleshooting of gas ignition modules by providing clear control across the induction and ignition phases.
What are the symptoms of a failing Trane CNT07230 module?
Common indicators include a furnace that clicks but fails to ignite, a "no spark" condition during the trial-for-ignition, or a system that drops the flame signal shortly after the main burner lights. Technicians should verify 24V power at the module and check the integrity of the spark electrode and flame rod before replacing the control.
Can the CNT07230 be used to replace older spark modules?
The Trane CNT07230 is a specific OEM part. It has superseded several older versions and is often used in place of discontinued units like the CNT05134. Always verify the wiring harness and mounting footprint match the existing furnace schematic to ensure full compatibility.
Does this module require a separate flame sensor?
This module supports remote flame sensing. In most Trane DSI applications, it works in conjunction with a dedicated flame rod to monitor the microamp signal. Failure to establish a minimum of 1.2 microamps will typically trigger a lockout sequence after the trial-for-ignition period.
