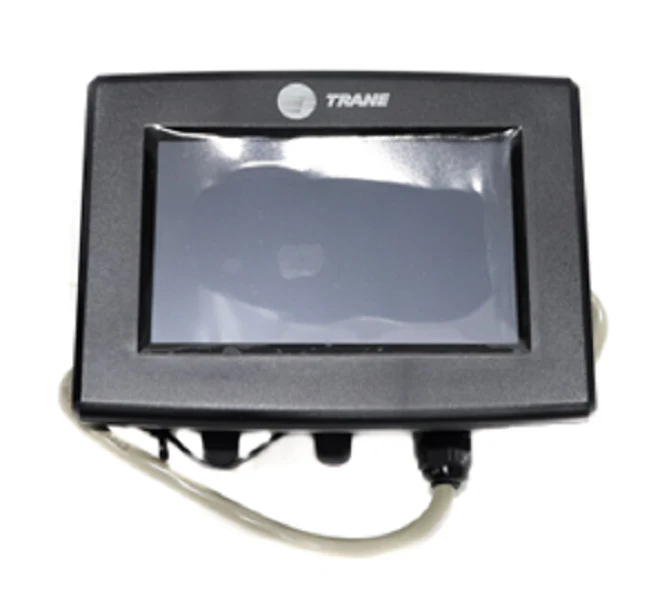

Trane CNT7131 Control
The Trane CNT7131 (also identified as CNT07131) is an authentic OEM TD5 Display Control engineered for technical integration within commercial HVAC environments. As a critical Trane HVAC interface module, this unit facilitates high-level monitoring and diagnostics for sophisticated rooftops and chillers. It utilizes a robust Modbus communication protocol, allowing field technicians to establish seamless connectivity between the local equipment and a centralized Building Management System (BMS). By providing real-time access to operational parameters and fault codes, the TD5 display control ensures precise system tuning and rapid troubleshooting in the field. This module is built to meet exact manufacturer specifications, ensuring the electrical integrity and communication hardware are fully compatible with existing Trane controls architecture without the need for field modifications.
Key Benefits for Technicians:
- BMS Integration: Native Modbus communication support enables easy mapping of points for comprehensive building automation.
- OEM Reliability: Replacing a failed interface with the genuine Trane CNT7131 preserves original equipment sequences and data accuracy.
- Diagnostic Efficiency: The TD5 display control provides clear visibility into sensor data and alarms, reducing mean time to repair (MTTR).
- System Optimization: Allows for precise setpoint adjustments and schedule overrides to maintain peak energy efficiency.
Common Questions:
How do I configure the Modbus settings on the CNT7131?
The Trane CNT7131 allows for address and baud rate configuration through the technician-level setup menus on the TD5 display control interface. Ensure your wiring uses a twisted-pair shielded cable for the RS-485 link to prevent signal interference.
Can this module replace older Trane display versions?
The CNT07131 is designed as a direct replacement for Trane commercial HVAC systems originally specified with this hardware. Always verify the firmware version and unit model compatibility before swapping the module to ensure all data points remain accessible.
What power source does the interface require?
This interface module typically draws power directly from the unit's control board via the dedicated communication harness, eliminating the need for an external transformer in most standard configurations.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
