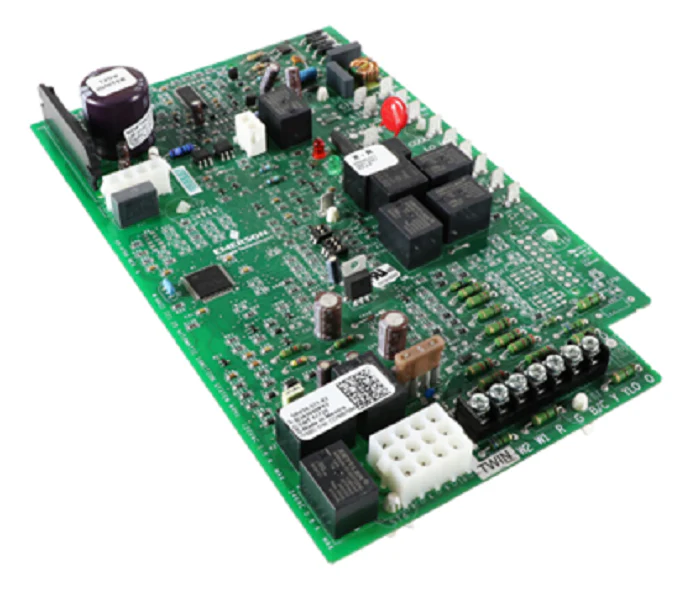

Trane CNT07720 Control Board
When you are out on a service call and running into a dual-stage system that will not fire, the Trane CNT07720 Control Board is the OEM-certified solution for restoring full functionality. As a veteran-grade 2-stage control board, this unit is the engineered direct replacement for the legacy CNT6584 (and superseded part CNT06584), ensuring a clean pin-to-pin match without field modifications. For technicians dealing with the XV95 or other variable speed gas furnaces, this board manages the critical timing between low and high-fire stages, optimizing overall HVAC system performance and preventing the rapid cycling caused by inferior aftermarket alternatives.
This integrated furnace control (IFC) features advanced on-board diagnostics via LED flash codes to help you pinpoint furnace repair issues involving pressure switches, limit trips, or hot surface igniter failures. The CNT07720 is built to handle the complex 120V inducer and blower motor sequencing required for precise temperature modulation. Whether you are performing an emergency gas furnace replacement or a precision tune-up, using this genuine Trane replacement part maintains the factory-spec logic needed for high-efficiency operation.
Key Benefits- Direct OEM Replacement: Replaces CNT6584 and CNT06584 without requiring any wiring re-harnessing.
- Enhanced Diagnostics: Integrated LED indicators provide rapid fault code readout for faster troubleshooting on the job site.
- 2-Stage Logic Control: Specifically designed to manage both W1 and W2 calls for consistent variable heating performance.
- Broad Compatibility: Supports a wide range of residential and commercial Trane HVAC systems, including high-efficiency condensing units.
Is the CNT07720 compatible with single-stage furnaces?
No, this board is specifically engineered for 2-stage heating and cooling systems. For single-stage units, verify the specific part number on the existing board to ensure proper blower sequencing.
Does this board replace the White Rodgers 50V50 series?
Yes, it serves as the official Trane replacement for several White Rodgers 50V50-571 configurations found in older American Standard and Trane equipment.
What are the signs that my current control board has failed?
Technicians should look for a "stuck" relay where the blower runs constantly, a failure to send 120V to the igniter, or the system ignoring a thermostat demand despite 24V presence at the terminal strip.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
