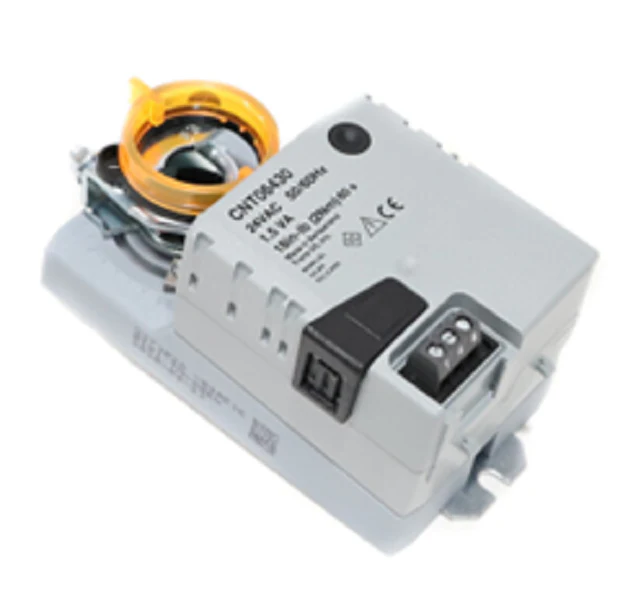

Trane CNT6430 Actuator
The Trane CNT6430 Actuator is a precision-engineered 24V HVAC damper motor designed for high-reliability airflow regulation in variable air volume (VAV) and multi-zone residential or commercial systems. Delivering 18 lb-in torque, this rotary actuator ensures positive seal closure and accurate positioning of dampers. As a direct-coupled component, the CNT6430 (often referenced by the updated SKU CNT06430) operates on a 24VAC 50/60Hz power supply and draws approximately 1.5VA, making it an efficient choice for large-scale building automation. Its robust construction facilitates 90-degree rotation and is rated for a wide operating temperature range from -40°F to 158°F, ensuring performance in unconditioned attic spaces or mechanical rooms. This OEM Trane replacement part is the standard for maintaining balanced static pressure and individual zone comfort in Trane and American Standard HVAC equipment.
Key Benefits for Contractors:- Direct Compatibility: Seamlessly replaces legacy Trane CNT6430 and CNT06430 units without mounting modifications.
- High Torque Output: The 18 lb-in rating provides sufficient force to overcome friction in weathered damper blades or high-velocity ductwork.
- Low Power Consumption: Minimal 1.5VA draw allows for multiple actuators to be powered by a single control transformer.
- Manual Override: Features a gear release button for manual positioning during system commissioning or emergency troubleshooting.
- Industrial Build Quality: IP67-style enclosure protection and premium internal gearing for long-cycle reliability.
Is the CNT6430 interchangeable with the CNT06430?
Yes, CNT06430 is the current manufacturer part number and is the direct functional replacement for the older CNT6430 model.
What are the wiring requirements for this actuator?
It requires standard 24V NEC Class II control wiring. For distances up to 150 feet, 18 AWG is recommended; for longer runs, use 16 or 14 AWG to prevent voltage drop.
Does this unit support spring return?
The Trane CNT6430 is a power-open/power-closed or floating point rotary actuator. Verify your control board outputs (PO, PC, COM) matches this three-wire configuration before installation.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $302.39
-65%$302.39
$105.84Trane CNT6430 Actuator
The Trane CNT6430 Actuator is a precision-engineered 24V HVAC damper motor designed for high-reliability airflow regulation in variable air volume (VAV) and multi-zone residential or commercial systems. Delivering 18 lb-in torque, this rotary actuator ensures positive seal closure and accurate positioning of dampers. As a direct-coupled component, the CNT6430 (often referenced by the updated SKU CNT06430) operates on a 24VAC 50/60Hz power supply and draws approximately 1.5VA, making it an efficient choice for large-scale building automation. Its robust construction facilitates 90-degree rotation and is rated for a wide operating temperature range from -40°F to 158°F, ensuring performance in unconditioned attic spaces or mechanical rooms. This OEM Trane replacement part is the standard for maintaining balanced static pressure and individual zone comfort in Trane and American Standard HVAC equipment.
Key Benefits for Contractors:- Direct Compatibility: Seamlessly replaces legacy Trane CNT6430 and CNT06430 units without mounting modifications.
- High Torque Output: The 18 lb-in rating provides sufficient force to overcome friction in weathered damper blades or high-velocity ductwork.
- Low Power Consumption: Minimal 1.5VA draw allows for multiple actuators to be powered by a single control transformer.
- Manual Override: Features a gear release button for manual positioning during system commissioning or emergency troubleshooting.
- Industrial Build Quality: IP67-style enclosure protection and premium internal gearing for long-cycle reliability.
Is the CNT6430 interchangeable with the CNT06430?
Yes, CNT06430 is the current manufacturer part number and is the direct functional replacement for the older CNT6430 model.
What are the wiring requirements for this actuator?
It requires standard 24V NEC Class II control wiring. For distances up to 150 feet, 18 AWG is recommended; for longer runs, use 16 or 14 AWG to prevent voltage drop.
Does this unit support spring return?
The Trane CNT6430 is a power-open/power-closed or floating point rotary actuator. Verify your control board outputs (PO, PC, COM) matches this three-wire configuration before installation.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
