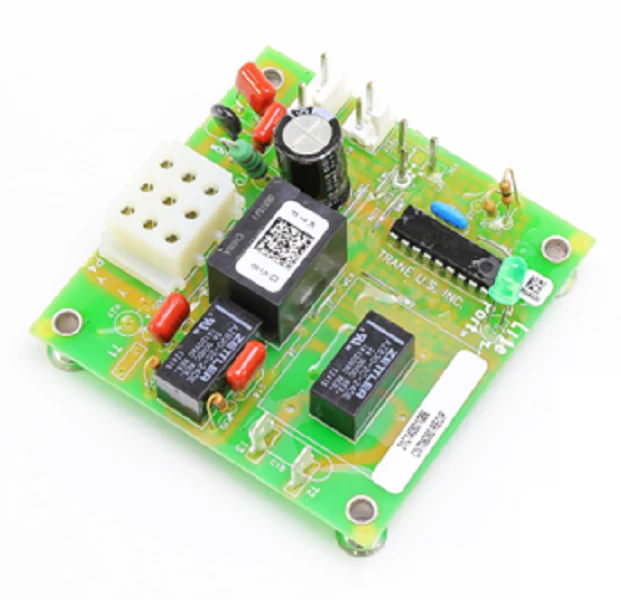

Trane CNT6080 Control Board
The Trane CNT6080 Control Board is a critical OEM defrost control replacement engineered for Trane heat pumps and residential packaged units. As a technical professional, you recognize the importance of the demand defrost cycle, which utilizes a sophisticated microprocessor to measure the delta-T between ambient air and outdoor coil temperatures. This high-efficiency defrost circuit board replaces legacy part numbers like CNT06080, ensuring precise control over the reversing valve and condenser fan motor to prevent excessive ice accumulation. By integrating advanced diagnostics, including LED fault codes (such as the four-flash hard lockout), this board allows for rapid troubleshooting in the field. The Trane CNT6080 features integrated pin headers for forced defrost cycles and testing, delivering optimized heat transfer and system reliability during low-ambient operations. Designed for a direct-fit installation, it maintains the precise voltage parameters required for industrial-grade refrigeration control while maximizing the performance of the evaporator assembly.
Key Benefits for Technicians:- Precise Defrost Timing: Employs demand defrost logic to initiate cycles only when necessary, improving seasonal energy efficiency ratios (SEER).
- Direct OEM Replacement: Guaranteed compatibility with Trane HVAC equipment, eliminating the need for complex field modifications.
- Diagnostic LED Interface: Simplifies troubleshooting with real-time feedback on system faults and sensor status.
- Integrated Test Pins: Allows for a forced defrost test (FRC_DFT) to confirm reversing valve and heat strip operation in seconds.
- Robust Construction: Built to withstand the harsh thermal cycling environments of outdoor heat pump units.
How do I initiate a manual defrost on the CNT6080?
To initiate a forced defrost, short the TEST_COMMON pin to the FRC_DFT pin for approximately two seconds. Ensure the unit is in heating mode and the compressor is running before attempting this diagnostic step.
What does a flashing LED on this defrost board indicate?
A steady flash of once per second indicates normal standby operation. Rapid flashing or a series of four flashes typically signals a hard lockout or a thermistor sensor fault, requiring a power cycle or sensor resistance check.
Is this board compatible with CNT06080?
Yes, the Trane CNT6080 is the direct factory replacement for CNT06080 and is designed to fit the original cabinet mounting footprint and wiring harness connectors.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $125.95
-65%$125.95
$44.08Trane CNT6080 Control Board
