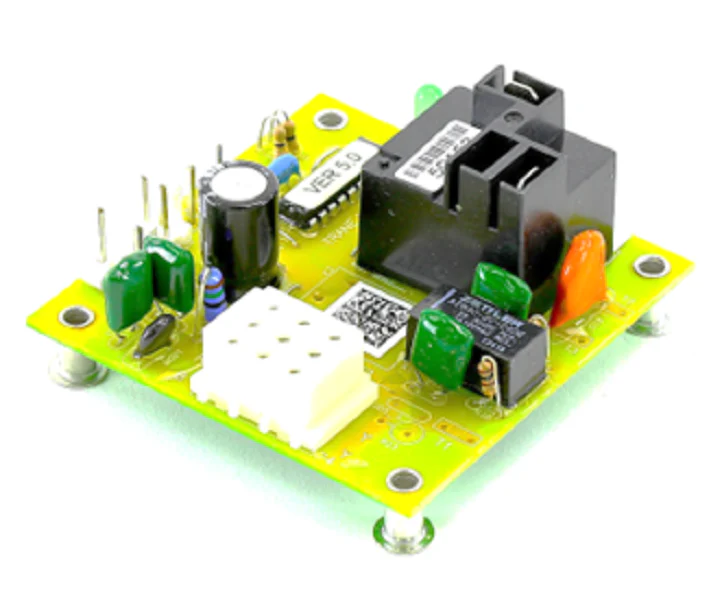

Trane CNT5009 Control Board
The Trane CNT5009 is a technical-grade defrost control board engineered for high-performance heat pump systems and central air conditioning units. As a direct OEM replacement part, this module utilizes an integrated microprocessor to monitor ambient temperatures and coil conditions, ensuring precise defrost cycle management. By eliminating excessive ice accumulation on the outdoor coil, the board prevents system strain and preserves the intended HVAC energy efficiency.
Designed for professional field installation, the CNT5009 control board features a rugged circuit architecture capable of withstanding the high-vibration environment of a condenser section. It serves as a critical heat pump troubleshooting component, resolving common failure points such as "frozen coil" symptoms or the failure of the reversing valve to engage during heating mode. This Trane replacement part provides the logic needed to coordinate 24V signals between the compressor, outdoor fan, and auxiliary heat strips, maintaining thermal stability in demanding outdoor climates.
Key Benefits
- Optimized Defrost Logic: Advanced microprocessor controls initiate defrost cycles only when necessary, reducing unnecessary mechanical wear.
- Direct OEM Compatibility: Engineered as a specific replacement for Trane CNT5009 and supersedes CNT05009 for 1:1 hardware matching.
- System Performance: Prevents thermal transfer loss by effectively managing frost buildup on the evaporator coil during low-ambient operation.
- Reliable Switching: Robust relays safely manage the transition between heating and cooling sequences, ensuring the reversing valve operates as commanded.
Common Questions
What are the signs that a Trane defrost board has failed?
Technicians typically look for a solid ice block on the outdoor unit, a condenser fan that won't stop running during defrost mode, or specific fault codes on the integrated LED. If the unit remains in cooling mode while the thermostat is set to heat, the board's logic may be compromised.
How do I verify if the CNT5009 is compatible with my unit?
Compatibility is determined by the model and serial number of your Trane or American Standard outdoor unit. This board is the standard replacement for many 4TWB and 4TWR series heat pumps. Field technicians should verify the existing part number matches CNT5009 or its supersessions.
Does this board include the defrost sensor?
The board is the central controller. While it monitors sensors to determine the defrost curve, sensors are typically separate components. We recommend testing your existing thermistors and pressure switches for proper resistance during board replacement.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
