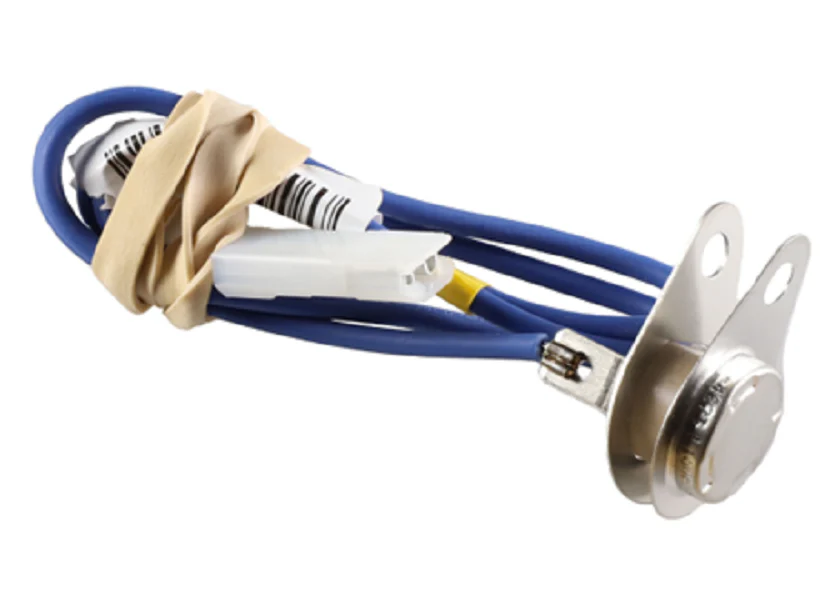

Trane CNT4821 Limit Switch
The Trane CNT4821 Limit Switch is a high-reliability safety component engineered for precision thermal monitoring in furnaces and air handlers. Featuring a 180F Auto Reset bi-metal disc mechanism, this switch serves as a critical fail-safe by opening the electrical circuit when internal plenum temperatures exceed safe operational limits. Once the temperature descends below the reset threshold (typically 160°F), the bi-metal disc automatically returns to the closed position, restoring system continuity without manual intervention. Designed for commercial and residential HVAC overheat protection, this OEM replacement part (also referenced as CNT04821) ensures that your blower or heating elements do not reach critical combustion levels. Built to withstand demanding environments, the Trane CNT4821 supports a current rating of up to 25A at 120/240VAC, making it a rugged choice for ensuring furnace safety limit compliance. Contractors can rely on its standard 1/4 inch terminal connections for rapid field installation and long-term HVAC system performance.
Key Benefits
- Precision Thermal Calibration: Calibrated to trip at exactly 180°F to prevent heat exchanger damage and system failure.
- Automatic Reset Logic: Eliminates nuisance service calls by automatically closing the circuit once temperatures stabilize below 160°F.
- Universal HVAC Compatibility: Fits a wide range of Trane and American Standard furnaces, air handlers, and packaged units.
- Durable Bi-Metal Construction: Engineered for thousands of cycles in high-heat environments without drift in temperature accuracy.
- Easy Field Integration: Standard female terminal connections allow for direct replacement of existing safety limits.
Common Questions
Is the Trane CNT4821 compatible with other brands?
While designed specifically for Trane and American Standard equipment, this switch can be used in other HVAC systems requiring a 180°F open limit with an automatic reset, provided the mounting footprint and electrical ratings match.
What causes this limit switch to trip frequently?
Frequent tripping usually indicates restricted airflow, such as a dirty air filter, blocked return vents, a failing blower motor, or an oversized furnace for the ductwork.
Can I test this switch for continuity?
Yes. At room temperature, the switch should show continuity (0 ohms). If the circuit is open at room temperature, the switch has likely failed or reached the end of its service life.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
