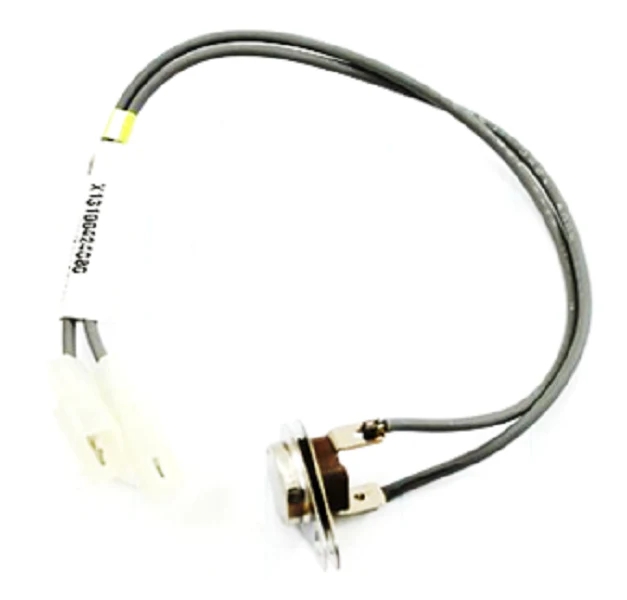

Trane CNT3786 Limit Switch
The Trane CNT3786 Limit Switch is a critical safety component designed for high-temperature monitoring in residential and commercial HVAC systems. This SPST (Single Pole Single Throw), Normally Closed (N/C) thermal switch is engineered to open the circuit at 225 degrees Fahrenheit, providing essential protection against heat exchanger overheating. As an Auto Reset (A/R) limit control, it automatically restores continuity once the temperature drops below the specified reset differential, minimizing manual intervention while ensuring system integrity. When diagnosing furnace issues or Trane limit switch troubleshooting, verifying the CNT3786 opening temperature is vital for maintaining proper airflow safety. This OEM replacement ensures precise calibration and long-term reliability in aging air handlers and gas furnaces. Proper installation involves secure mounting to the partition or inducer housing to ensure accurate thermal sensing and prevent furnace short cycling caused by premature trips.
- Precise Thermal Safety: Factory-calibrated for an accurate 225°F trip point to protect heat exchangers from structural damage.
- Automatic Reset Logic: Features Auto-Reset (A/R) functionality to restore furnace operation once safe temperatures are reached.
- OEM Compatibility: Engineered specifically for Trane and American Standard equipment to ensure direct fitment and electrical compliance.
- Durable Construction: Built with high-grade bimetal sensing elements to withstand localized heat and frequent cycling.
Common Questions
Is the Trane CNT3786 a manual or automatic reset switch?
The CNT3786 is an Automatic Reset switch, meaning it will close the circuit on its own once the internal bimetal disc cools down below the reset threshold.
What causes this limit switch to trip frequently?
Frequent tripping is often caused by insufficient airflow, which can be attributed to clogged air filters, a failing blower motor, or restricted ductwork.
Can I bypass the CNT3786 for testing during a service call?
Bypassing is only recommended for temporary diagnostic verification by a qualified technician; the system must never be left operating without a functional high limit safety switch.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
