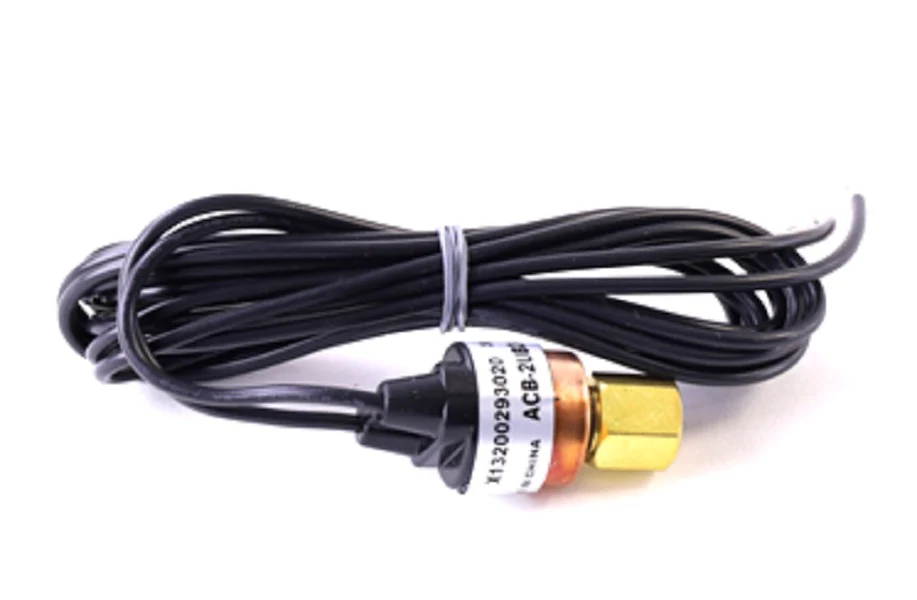

Trane CNT3159 Pressure Switch
The Trane CNT3159 Pressure Switch is an essential high-pressure cut-out designed for precise refrigerant circuit monitoring in residential and light commercial HVAC units. This SPNO (Single Pole Normally Open) switch serves as a critical safety component, engineered to open the circuit when system pressure reaches 400 PSI and reset upon falling to 250 PSI. Built for compatibility with modern high-pressure refrigerants like R-410A, the CNT3159 prevents compressor damage caused by excessive head pressure. When performing high-side maintenance or HVAC pressure switch troubleshooting, verifying these specific set points is vital for system protection. This genuine OEM Trane replacement part ensures a exact match for 1/4" flare connections, eliminating the need for field modifications. Contractors prioritizing high pressure switch replacement accuracy will find the CNT3159 provides the reliability needed for Trane condenser repair and long-term system stability under demanding load conditions.
Key Benefits for Technicians- Precise Calibration: Factory-set at 400 PSI open and 250 PSI close for consistent over-pressure protection.
- OEM Compatibility: Direct-fit substitute for legacy high-limit pressure switches in Trane and American Standard equipment.
- Durable Construction: Engineered to withstand high-cycle rates and harsh environmental exposure in outdoor units.
- Simplified Installation: Standard electrical terminations and thread sizing for efficient field swaps.
How do I test the Trane CNT3159 for continuity?
With the system off and pressures below 250 PSI, the switch should show an open circuit. Once pressure exceeds the 400 PSI threshold, the internal contact closes. Use a calibrated manifold gauge set to verify system pressure against these specific set points during HVAC electrical diagnostics.
What causes a Trane high pressure switch to trip frequently?
Frequent tripping usually indicates restricted airflow across the condenser coil, a failing outdoor fan motor, or a refrigerant overcharge. Always inspect the coil for debris before assuming the pressure switch is faulty.
Can the CNT3159 be used on R-22 systems?
While technically compatible with the refrigerant, its 400 PSI trip point is specifically calibrated for the higher operating pressures of R-410A. Applying this to an R-22 system may result in delayed safety response times.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $67.18
-65%$67.18
$23.51Trane CNT3159 Pressure Switch
The Trane CNT3159 Pressure Switch is an essential high-pressure cut-out designed for precise refrigerant circuit monitoring in residential and light commercial HVAC units. This SPNO (Single Pole Normally Open) switch serves as a critical safety component, engineered to open the circuit when system pressure reaches 400 PSI and reset upon falling to 250 PSI. Built for compatibility with modern high-pressure refrigerants like R-410A, the CNT3159 prevents compressor damage caused by excessive head pressure. When performing high-side maintenance or HVAC pressure switch troubleshooting, verifying these specific set points is vital for system protection. This genuine OEM Trane replacement part ensures a exact match for 1/4" flare connections, eliminating the need for field modifications. Contractors prioritizing high pressure switch replacement accuracy will find the CNT3159 provides the reliability needed for Trane condenser repair and long-term system stability under demanding load conditions.
Key Benefits for Technicians- Precise Calibration: Factory-set at 400 PSI open and 250 PSI close for consistent over-pressure protection.
- OEM Compatibility: Direct-fit substitute for legacy high-limit pressure switches in Trane and American Standard equipment.
- Durable Construction: Engineered to withstand high-cycle rates and harsh environmental exposure in outdoor units.
- Simplified Installation: Standard electrical terminations and thread sizing for efficient field swaps.
How do I test the Trane CNT3159 for continuity?
With the system off and pressures below 250 PSI, the switch should show an open circuit. Once pressure exceeds the 400 PSI threshold, the internal contact closes. Use a calibrated manifold gauge set to verify system pressure against these specific set points during HVAC electrical diagnostics.
What causes a Trane high pressure switch to trip frequently?
Frequent tripping usually indicates restricted airflow across the condenser coil, a failing outdoor fan motor, or a refrigerant overcharge. Always inspect the coil for debris before assuming the pressure switch is faulty.
Can the CNT3159 be used on R-22 systems?
While technically compatible with the refrigerant, its 400 PSI trip point is specifically calibrated for the higher operating pressures of R-410A. Applying this to an R-22 system may result in delayed safety response times.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
