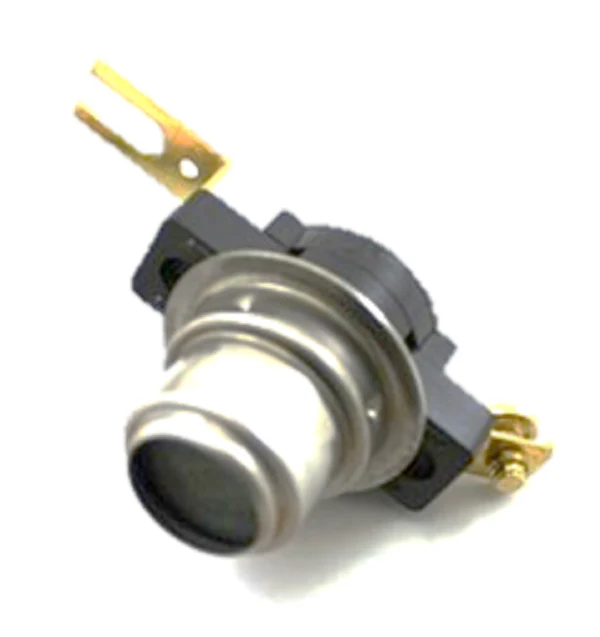

Trane CNT1320 Temp Control
The Trane CNT1320 is an essential OEM temperature control designed for precise thermal management within residential and light commercial HVAC systems. This SPST temp control (Single-Pole Single-Throw) is engineered to maintain system safety by monitoring internal temperatures with high reliability. It features a technical setpoint configuration of 140Op 95Cl, meaning the switch is designed to open the circuit at 140°F to prevent overheating and automatically reset as it closes at 95°F. Field technicians often refer to this as a high limit switch or temperature limit control because of its critical role in protecting the compressor and heating elements from thermal overload.
Built as a genuine HVAC replacement part, the CNT1320 ensures direct compatibility with specific Trane and American Standard air handlers and furnaces, eliminating the guesswork associated with universal aftermarket alternatives. Its lightweight 0.05 lbs design allows for versatile mounting, providing an accurate 95 to 140 degrees Fahrenheit operational range. For contractors performing preventative maintenance or emergency repairs, this sensor is the go-to solution for restoring factory-standard safety parameters and ensuring the long-term integrity of the unit’s electrical circuit.
Key Benefits:
- Precision Thermal Calibration: Factory-set 140°F open and 95°F close points ensure accurate thermal protection without manual adjustment.
- Direct OEM Fit: Specific to Trane and American Standard platforms, guaranteeing proper lead alignment and mounting footprint.
- Robust SPST Switching: High-duty cycle single-pole mechanism provides a clean break in the circuit to stop power flow during over-temp conditions.
- Enhanced System Resilience: Acts as a critical secondary safety, protecting expensive downstream components like compressors from heat damage.
Common Questions:
- What is the primary function of the 140Op 95Cl rating? This rating specifies that the control will break the electrical connection when it senses 140°F and will not allow the circuit to re-energize until the temperature drops back down to 95°F.
- Is the CNT1320 a manual or automatic reset switch? This is an automatic reset limit; once the temperature reaches the 95°F closing threshold, the switch will reset itself to the closed position.
- Can I use this as a universal replacement for other temperature ranges? No. It is vital to match the exact temperature specifications (140/95) to ensure the system operates within its engineered safety envelope.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
