Trane CAB1147 Wiring Harness

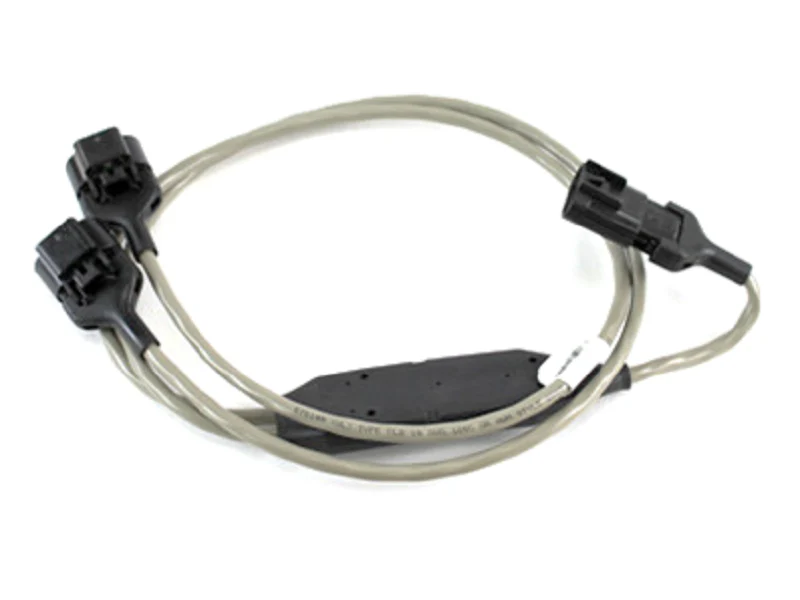

When you're out in the field servicing high-capacity Trane units, wire management and reach become critical to maintaining reliable communication between modules. The Trane CAB1147 Wiring Harness, also identified by part number CAB01147 or X19051622020, is a heavy-duty branching harness extension designed for seamless integration within a pluggable connector system. Measuring approximately 39.37 inches (100cm) with a male to 2 female configuration, this branching lead is built to survive the harsh electrical environments of commercial HVACR equipment. For technicians troubleshooting Trane CGAM, CXAM scroll chillers, or larger centrifugal models like the CVHE and RTAC, this harness provides the necessary slack for unit bus troubleshooting or relocating control boxes during a water box removal. Its sealed connector system is automotive-grade, ensuring moisture-resistant electrical connections and preventing signal degradation in the unit’s communication loop. For contractors, having the 1-to-2 branching capability simplifies HVAC circuit expansion and supports complex LLID module connections without the need for field-splicing specialized communication wires.
Key Benefits for Technicians:- OEM Compatibility: Designed as a direct replacement for Trane CAB1147 and CAB-1147, ensuring 100% compatibility with Trane chiller controls.
- Modular Flexibility: Features a 1-to-2 branching design that allows for efficient unit bus troubleshooting and module expansion in screw chiller models.
- Durable Construction: Built with an automotive-grade sealed connector system to protect against environmental contaminants and vibration.
- Extended Reach: Provides 100cm of added length, perfect for control box relocation or accessing tight spaces during HVAC preventative maintenance.
- Plug-and-Play Installation: The male to 2 female pluggable system allows for repeated manual disconnection and reconnection without damaging the terminal pins.
- Which Trane models use the CAB1147 harness? This Trane wiring extension is widely used in CGAM/CXAM scroll chillers, CVHE/CVHG/CVGF centrifugal chillers, and RTAC/RTAF/RTHD screw chillers.
- Does this harness require special tools for installation? No. It is part of Trane’s modern pluggable connector system, designed for tool-less field installation to speed up repair times.
- Can this be used for both power and communication? While primarily used for unit bus communication and LLID connection, its sealed design ensures it handles low-voltage control signals with high precision.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $129.07
-65%$129.07
$45.17Trane CAB1147 Wiring Harness
When you're out in the field servicing high-capacity Trane units, wire management and reach become critical to maintaining reliable communication between modules. The Trane CAB1147 Wiring Harness, also identified by part number CAB01147 or X19051622020, is a heavy-duty branching harness extension designed for seamless integration within a pluggable connector system. Measuring approximately 39.37 inches (100cm) with a male to 2 female configuration, this branching lead is built to survive the harsh electrical environments of commercial HVACR equipment. For technicians troubleshooting Trane CGAM, CXAM scroll chillers, or larger centrifugal models like the CVHE and RTAC, this harness provides the necessary slack for unit bus troubleshooting or relocating control boxes during a water box removal. Its sealed connector system is automotive-grade, ensuring moisture-resistant electrical connections and preventing signal degradation in the unit’s communication loop. For contractors, having the 1-to-2 branching capability simplifies HVAC circuit expansion and supports complex LLID module connections without the need for field-splicing specialized communication wires.
Key Benefits for Technicians:- OEM Compatibility: Designed as a direct replacement for Trane CAB1147 and CAB-1147, ensuring 100% compatibility with Trane chiller controls.
- Modular Flexibility: Features a 1-to-2 branching design that allows for efficient unit bus troubleshooting and module expansion in screw chiller models.
- Durable Construction: Built with an automotive-grade sealed connector system to protect against environmental contaminants and vibration.
- Extended Reach: Provides 100cm of added length, perfect for control box relocation or accessing tight spaces during HVAC preventative maintenance.
- Plug-and-Play Installation: The male to 2 female pluggable system allows for repeated manual disconnection and reconnection without damaging the terminal pins.
- Which Trane models use the CAB1147 harness? This Trane wiring extension is widely used in CGAM/CXAM scroll chillers, CVHE/CVHG/CVGF centrifugal chillers, and RTAC/RTAF/RTHD screw chillers.
- Does this harness require special tools for installation? No. It is part of Trane’s modern pluggable connector system, designed for tool-less field installation to speed up repair times.
- Can this be used for both power and communication? While primarily used for unit bus communication and LLID connection, its sealed design ensures it handles low-voltage control signals with high precision.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
