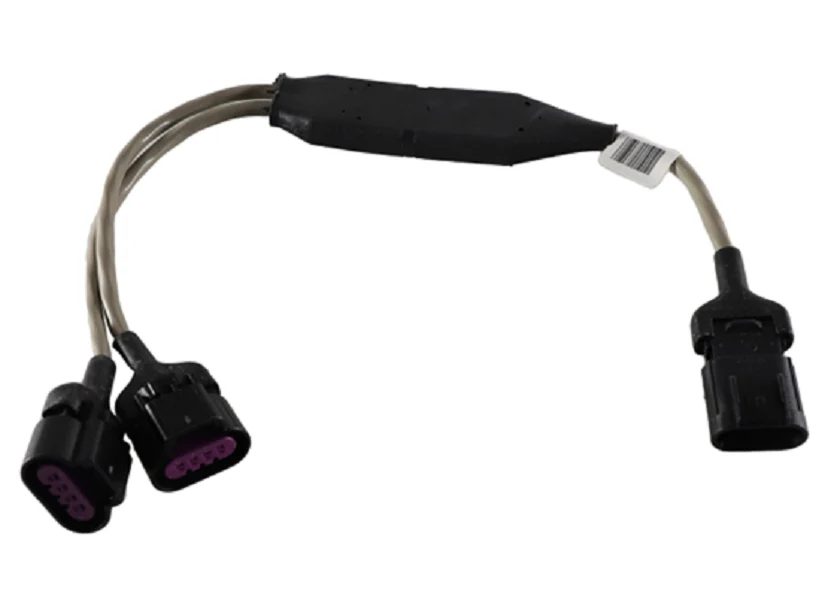

Trane CAB1146 Wiring Harness
When you're out in the field dealing with a layout that doesn't match the standard lead lengths, the Trane CAB1146 Wiring Harness is the 16.69-inch extension you need to maintain project momentum. This bypasses the need for field-splicing, providing a clean, OEM-grade branching harness that splits a single male connector into two female plugs. It is an essential component for technicians working on Trane chiller maintenance or large-scale commercial rooftop unit installations where wiring range falloffs are common.
Built for the rigors of heavy-duty HVACR environments, this harness utilizes a sealed connector system that prevents moisture intrusion and terminal corrosion. This specific branching configuration is frequently used in Trane sensor wiring applications and communication bus circuits, supporting efficient troubleshooting and component replacement without the risk of loose terminal blocks or improper crimps. By utilizing a 16.69-inch HVAC wiring harness extension, you ensure that high-voltage or low-voltage signals remain consistent across the branching male to female connection, upholding the technical integrity of the control board interface.
Key Benefits:- Precise 16.69-inch Reach: Eliminates wire tension and provides the exact clearance needed for complex HVAC branching routes.
- Sealed Pluggable System: Durable, automotive-grade connectors allow for repeated disconnection during HVAC troubleshooting without damaging terminals.
- OEM Compatibility: Designed as a direct replacement or extension for Trane CAB1146 and CAB01146 models, ensuring perfect pin alignment.
- Branching Configuration: Features a single male to dual female layout to support multiple sensors or module connections from a single point.
- Is this harness compatible with Trane chillers? Yes, the Trane CAB1146 is commonly used on CGAM, CXAM, CVHE, and RTAC series chillers for sensor and module communication.
- Does this require special tools for installation? No, the pluggable connector design is engineered for manual field connection, ensuring a secure "click" fit without specialized crimp tools.
- Can this be used for communication bus troubleshooting? Absolutely. Technicians use this branching harness to isolate circuits or add temporary test points within the unit bus system.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
