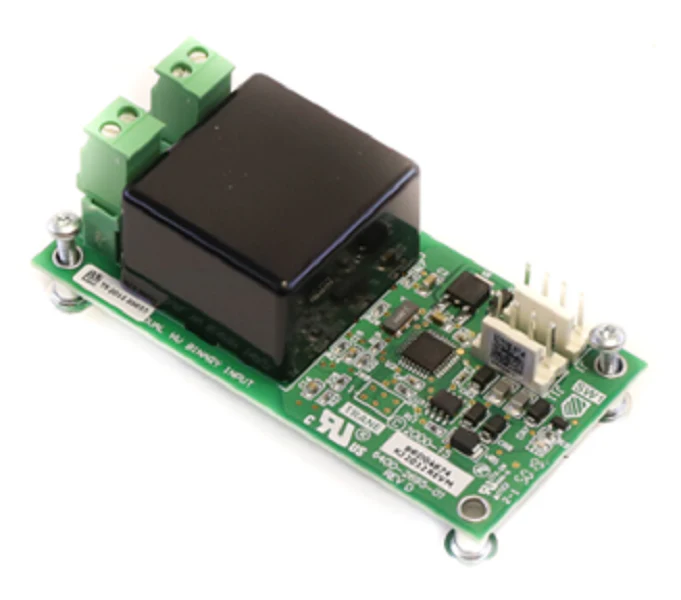

Trane BRD4874 Board
The Trane BRD4874 Dual Hi Voltage Binary Input Board (MPN: BRD4874, also identified as X13650734060) is a critical interface module for Trane chiller controls, specifically engineered for Tracer CH530 and Tracer TD7 automation platforms. This OEM board acts as a precise signal translator, converting high-voltage binary inputs from external field devices—such as pressure switches and safety relays—into digital data the HVAC control module can process. Built for the rigorous electrical environment of industrial chillers, the BRD4874 ensures high-fidelity monitoring and status feedback for Trane CGAM, CVGF, RTAC, and RTHD chiller models. Its robust construction resists electrical noise interference, maintaining system stability during high-demand cooling cycles. Replacing a legacy BRD02946, this board features rugged pluggable connectors for accelerated field installation and improved maintenance efficiency. Precise binary input detection is vital for refrigerant safety protocols and multi-device operational synchronization in commercial HVACR applications.
Key Benefits
- Direct OEM Compatibility: Engineered for seamless integration with Tracer CH530 and Tracer TD7 control systems.
- Universal Chiller Application: Fits a broad range of models, including Trane CVHG, RTWD, and RTUD series.
- Simplified Repair: Features pluggable connectors to minimize downtime during field replacements.
- Advanced Signal Processing: Effectively converts high-voltage binary signals into actionable system diagnostics.
- Verified Replacement: Current high-performance update for superseded part numbers BRD02946 and BRD2946.
Common Questions
Does the BRD4874 require programming after installation?
Yes, as an OEM HVAC control board, this module typically requires configuration or programming through the Trane TechView or equivalent service software to synchronize with your specific chiller model and input parameters.
Which chiller models use the BRD4874?
This board is common in Trane CGAM, CVGF, RTAC, RTAF, and RTHD units, where it monitors critical safety binaries and external device status.
What are the signs of a failing binary input board?
Typical failure symptoms include intermittent communication errors on the CH530 display, false safety trips, or the inability of the chiller controller to recognize inputs from high-voltage safety switches.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $426.46
-65%$426.46
$149.26Trane BRD4874 Board
