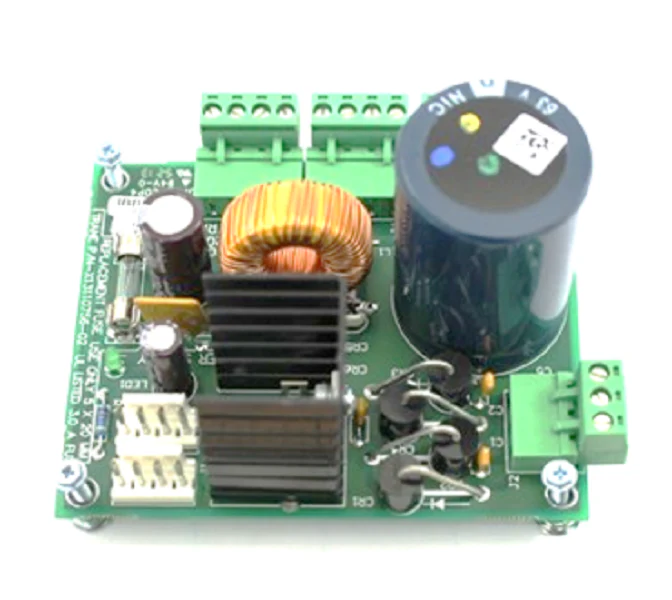

Trane BRD2102 Power Supply
Upgrade your chiller control platform with the Trane BRD2102 Power Supply, a critical OEM component designed for high-performance DC regulation. This robust power supply board accepts a 27VAC input and provides a regulated 24VDC output, ensuring clean and stable power for sensitive control electronics. Engineered as a direct replacement for the Trane CH530 controller and Tracer TD7 modules, the BRD2102 is essential for maintaining the operational integrity of Large Chiller products, including the RTAC, RTHD, and CGAM series. By delivering consistent 24VDC power distribution, this board prevents communication errors and erratic sensor readings often caused by voltage fluctuations in industrial environments.
As a veteran-grade HVAC power supply replacement, the BRD2102 (also identified as X13650737070) excels in high-demand screw and centrifugal chiller applications. It replaces legacy part numbers BRD-2102 and X13650737060, offering a reliable solution for technicians troubleshooting Dynaview and Tracer CH530 systems. When conducting HVAC system diagnostics on large-scale commercial units, replacing a failing OEM Trane circuit board with this genuine component ensures full compatibility with existing harness configurations and control logic, effectively reducing system downtime and protecting the longevity of downstream modules.
Key Benefits:- Precise Voltage Conversion: Efficiently rectifies 27VAC to a stable 24VDC output to protect sensitive control modules.
- Broad Chiller Compatibility: Specific to Trane RTAC, RTHD, RTWD, RTUD, CGAM, and CVGF models.
- Tracer Series Integration: Optimized for seamless communication with Tracer CH530 and Tracer TD7 operator interfaces.
- Industrial Durability: Built to withstand the electrical noise and thermal demands of chiller plant rooms.
- OEM Fit and Finish: Matches exact mounting footprints and terminal layouts for rapid field replacement.
What are the signs that my Trane BRD2102 power supply is failing?
Common indicators include intermittent communication losses with the Tracer CH530 module, "no display" on the Dynaview interface, or erratic 24VDC bus voltages that cause nuisance trips across various system sensors.
Can I use an aftermarket 24VDC supply instead of the BRD2102?
We do not recommend generic supplies. The BRD2102 is specifically designed to handle the 27VAC input common in Trane chiller control circuits and provides the exact form factor required for the control cabinet's internal rail system.
How do I verify if the BRD2102 is the source of my control issue?
Technicians should measure the input voltage (aiming for ~27VAC) and the output voltage at the terminals. If the output is significantly above or below 24VDC, or if there is excessive AC ripple, the board should be replaced to prevent damage to the main processor.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
