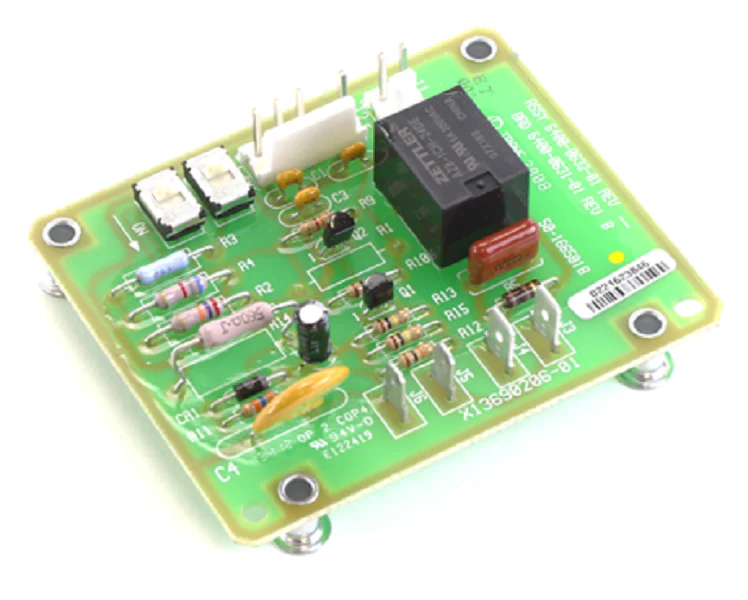

Trane BRD0742 Defrost Board
The Trane BRD0742 Defrost Board is an essential OEM replacement control module designed for high-performance heat pump systems. Engineered to manage the defrost cycle with precision, this board monitors critical ambient temperature and coil temperature data to initiate and terminate defrosting via a sophisticated microprocessor control algorithm. By optimizing the timing of the reversing valve and condenser fan operation, the BRD0742 prevents excessive ice accumulation on the outdoor coil, maintaining system efficiency and protecting the compressor from liquid slugging during low-ambient heating operations.
Built for durability in demanding environments, this PC board defrost module is compatible with various light commercial and residential models, including the WCD240 series. It features clear terminal markings for 24VAC power (R and B/Common), Y compressor signals, and sensor inputs, ensuring a streamlined installation for service technicians. Integrating this genuine Trane HVAC part ensures the system adheres to original factory specifications, avoiding the communication errors often associated with universal aftermarket alternatives.
- Precision Cycle Management: Advanced logic monitors coil sensors to minimize unnecessary defrost cycles and energy waste.
- System Protection: Actively prevents outdoor coil freeze-up, preserving airflow and heat transfer efficiency during winter.
- Direct OEM Fit: Drop-in replacement for BRD0742 and BRD00742 ensures full compatibility with factory wiring harnesses.
- Diagnostic Reliability: Onboard LED indicators help technicians quickly identify fault codes or hard lockouts for faster troubleshooting.
Common Questions
How do I initiate a forced defrost on the BRD0742?
Technicians can jump the TST-COM and FRC-DFT pins while the unit is in a run cycle to verify the reversing valve and fan motor sequence.
What does a 4-flash error code mean on this board?
Typically, four flashes indicate a hard lockout, which requires a full power cycle to reset after the underlying sensor or mechanical fault is cleared.
Can I use a universal board to replace the BRD0742?
While some universal boards exist, using the genuine Trane BRD0742 is recommended to ensure the specific temperature-resistance curves of the OEM sensors are followed accurately.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
