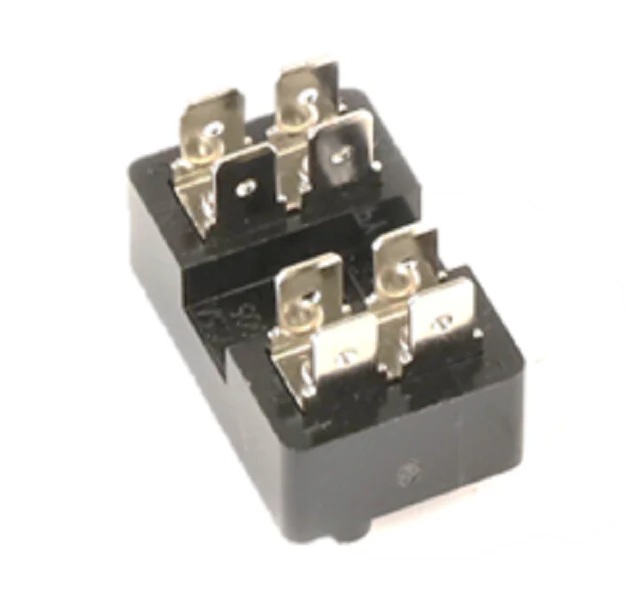

Trane BLK1522 Terminal Block
The Trane BLK1522 Terminal Block is a critical OEM component designed for high-integrity electrical distribution within Trane industrial and commercial HVAC systems. As an essential HVAC wire connector, this block facilitates the organized and secure termination of multiple electrical circuits, preventing the loose contacts and high-resistance connections that lead to premature component failure. Measuring 3.375 inches in length and 2.5 inches in both width and height, the BLK1522 features a compact footprint ideal for standard control cabinets and tight refrigeration housings. This terminal junction block is engineered with durable insulating materials to maintain circuit isolation and electrical safety under high-demand motor and compressor operations. Whether you are performing a control board replacement or a full system retrofit, utilizing this genuine Trane electrical part ensures field wiring complies with original equipment manufacturer (OEM) specifications, simplifying troubleshooting and long-term system maintenance for HVACR contractors.
Key Benefits
- Ensures consistent electrical continuity to prevent voltage drop and terminal overheating.
- Simplifies HVAC wiring troubleshooting by providing clearly defined termination points for multi-wire configurations.
- High-grade insulated terminal construction provides superior protection against electrical shorting in humid or high-vibration environments.
- Direct OEM replacement compatibility ensures seamless fitment without the need for field modifications to the mounting bracket.
- Lightweight yet rugged design (0.11 lbs) allows for secure mounting in various orientations within the control box.
Common Questions
Can the BLK1522 be used for both 24V control circuits and line voltage power distribution?
Yes, this multi-terminal block is rated for various voltage applications within Trane equipment, though technicians should always verify the specific amperage draw against the system’s wiring diagram to ensure proper load balancing.
How do I prevent wire pull-out on these terminal connections?
Properly torquing the screw terminals is essential. For best results with stranded HVAC wire, we recommend using appropriate ferrule connectors or ensuring the wire is fully seated before securing the terminal clamp.
Is this terminal block compatible with other brands like Oxbox?
Yes, the BLK1522 (also referred to as BLK01522) is a versatile component found across several brands under the Trane Technologies umbrella, making it a reliable OEM HVAC part for various packaged units and split systems.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
