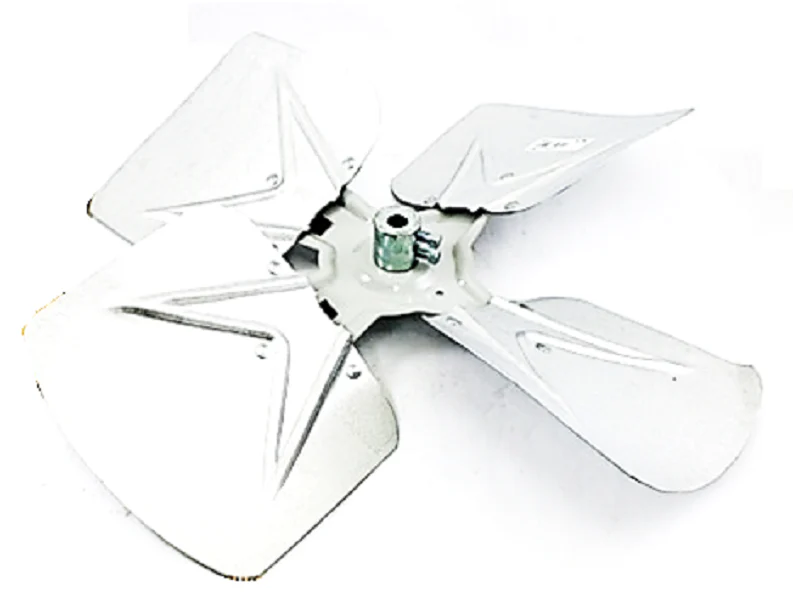

Trane BLD0637 Fan Blade
The Trane BLD0637 Fan Blade is a heavy-duty industrial component engineered for precision airflow in high-static condenser and air handler applications. This 20-inch 4-blade assembly features a 26-degree pitch optimized for maximum CFM output while maintaining structural integrity under load. Designed for CCW (Counter-Clockwise) rotation, it utilizes a 1/2" bore on discharge configuration, ensuring a secure fit on standard motor shafts. When replacing a worn or unbalanced blade, the BLD0637 offers the exact aerodynamic profile required to maintain system head pressure and prevent premature motor failure. This OEM Trane replacement fan blade is manufactured from high-grade materials to resist corrosion and vibration fatigue in demanding outdoor environments. For contractors performing HVAC condenser fan blade replacement, verifying the pitch and rotation is critical; the BLD0637 provides a drop-in solution for specific Trane and American Standard units requiring a 20-inch HVAC fan blade with these precise geometrical specifications.
Technical Specifications & Key Benefits
- Optimal Airflow Delivery: The 26-degree pitch is calibrated to move specific air volumes required for refrigerant heat exchange.
- Precision Balance: Factory-balanced 4-blade design reduces mechanical vibration and extends the life of the fan motor bearings.
- Durable Construction: Engineered to withstand the rigors of continuous cycling and environmental exposure.
- Direct OEM Fit: Eliminates the guesswork associated with universal blades, ensuring proper clearance within the fan shroud.
- Bore Specifics: Includes a 1/2" hub diameter, optimized for standard 48-frame and 56-frame motor shafts.
Common Installation Questions
How do I confirm the rotation of the Trane BLD0637?
This blade is rated for CCW rotation as viewed from the discharge side. Always verify the rotation of your existing motor before installation to ensure the air is being pulled or pushed in the correct direction across the coils.
Can I use this blade if my original pitch is different?
No. Using a blade with a different pitch, even if the diameter matches, will change the amperage draw on your fan motor. A 26-degree pitch fan blade must be replaced with the identical specification to prevent motor overheating or reduced cooling capacity.
What is the importance of the 1/2" bore size?
The 1/2" bore ensures a tolerance-fit on the motor shaft. It is vital to clean the motor shaft of any rust or debris before seating the BLD0637 to ensure it is locked securely and rotates true.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
