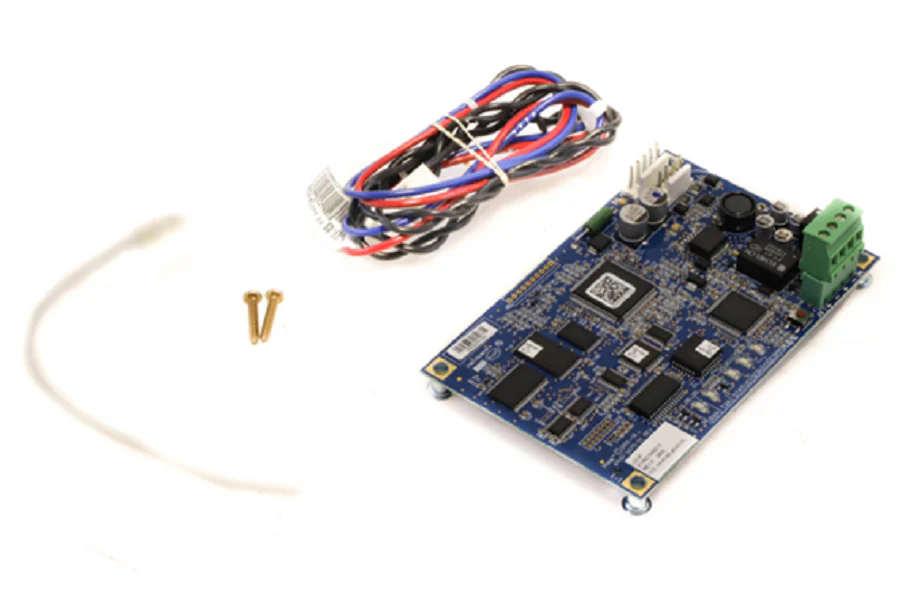

Trane BAYLTCI002B Board
Ensure seamless integration and data exchange in your commercial HVAC systems with the Trane BAYLTCI002B Board. This Reliatel Communications Interface (TCI) is a specialized microprocessor module designed to bridge the gap between Trane equipment—specifically Precedent, Voyager II, and Odyssey series units—and sophisticated building automation systems. By facilitating high-speed comm3/comm4 logic, this board allows for full-scale Tracer Summit, Tracker, and VariTrac 1/2 integration. The trane reliatel board functions as the primary mediator for two-way communication, enabling remote monitoring, precision diagnostics, and real-time setpoint calibration without manual intervention at the unit control box. Weighing approximately 0.95 lbs and featuring a compact profile, this OEM replacement part mounts directly within the existing control enclosure. It is engineered to transmit critical operational variables, providing contractors with the deep-level system feedback required for advanced commissioning and performance optimization in complex industrial automation environments.
Key Benefits- Universal Compatibility: Connects ReliaTel microprocessor controls to legacy and modern Trane ICS systems including Tracer 100 series and central control panels.
- Enhanced System Visibility: Facilitates remote access to error codes and diagnostic data points, reducing onsite troubleshooting time for field technicians.
- Precise Control: Enables automated system calibration and remote setpoint adjustment via a twisted-pair communication link.
- Simplified Installation: Designed for rapid field mounting with specialized wire harnesses that plug directly into the J4 port on the ReliaTel Refrigeration Module.
Which systems support the BAYLTCI002B interface?
This board is factory-ready for use with 3 to 10-ton Precedent packaged rooftops, 6 to 25-ton split systems, and specific Voyager light commercial units utilizing the ReliaTel controls platform.
Does this board support LonTalk or BACnet protocols?
The BAYLTCI002B is specifically designed for comm3 and comm4 communication. For LonTalk (LCI-R) or BACnet (BCI-R) requirements, different interface modules are required.
What is required for the initial setup?
Installation requires a qualified technician to set the DIP switch addresses for network recognition. Technicians should verify the version number on the microprocessor chip behind the daughter-board to ensure software compatibility with the unit's main RTRM module.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $531.94
-65%$531.94
$186.18Trane BAYLTCI002B Board
Ensure seamless integration and data exchange in your commercial HVAC systems with the Trane BAYLTCI002B Board. This Reliatel Communications Interface (TCI) is a specialized microprocessor module designed to bridge the gap between Trane equipment—specifically Precedent, Voyager II, and Odyssey series units—and sophisticated building automation systems. By facilitating high-speed comm3/comm4 logic, this board allows for full-scale Tracer Summit, Tracker, and VariTrac 1/2 integration. The trane reliatel board functions as the primary mediator for two-way communication, enabling remote monitoring, precision diagnostics, and real-time setpoint calibration without manual intervention at the unit control box. Weighing approximately 0.95 lbs and featuring a compact profile, this OEM replacement part mounts directly within the existing control enclosure. It is engineered to transmit critical operational variables, providing contractors with the deep-level system feedback required for advanced commissioning and performance optimization in complex industrial automation environments.
Key Benefits- Universal Compatibility: Connects ReliaTel microprocessor controls to legacy and modern Trane ICS systems including Tracer 100 series and central control panels.
- Enhanced System Visibility: Facilitates remote access to error codes and diagnostic data points, reducing onsite troubleshooting time for field technicians.
- Precise Control: Enables automated system calibration and remote setpoint adjustment via a twisted-pair communication link.
- Simplified Installation: Designed for rapid field mounting with specialized wire harnesses that plug directly into the J4 port on the ReliaTel Refrigeration Module.
Which systems support the BAYLTCI002B interface?
This board is factory-ready for use with 3 to 10-ton Precedent packaged rooftops, 6 to 25-ton split systems, and specific Voyager light commercial units utilizing the ReliaTel controls platform.
Does this board support LonTalk or BACnet protocols?
The BAYLTCI002B is specifically designed for comm3 and comm4 communication. For LonTalk (LCI-R) or BACnet (BCI-R) requirements, different interface modules are required.
What is required for the initial setup?
Installation requires a qualified technician to set the DIP switch addresses for network recognition. Technicians should verify the version number on the microprocessor chip behind the daughter-board to ensure software compatibility with the unit's main RTRM module.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
