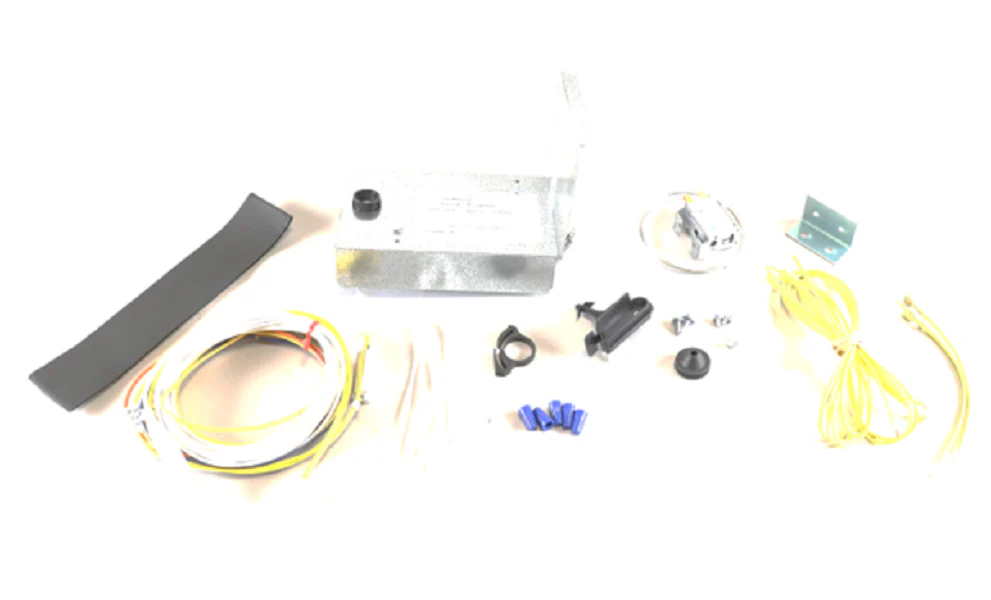

Trane BAYLOAM105A Control Kit
The Trane BAYLOAM105A is a specialized Low Ambient Cooling Control Kit engineered to maintain stable head pressure when air conditioning or heat pump systems operate in cooling mode at outdoor temperatures below 55°F. Designed for compatibility with various Trane and American Standard packaged units, including 2/4WC, 4TC, and 4YC series, this kit prevents evaporator coil freeze-up and ensures reliable lubrication by cycling the outdoor fan motor based on liquid line temperatures. By modulating fan speed or cycling, the BAYLOAM105AA control module preserves the necessary pressure differential across the expansion valve (TXV), preventing system trips and potential compressor damage in cold weather applications.
For technicians performing a retrofit or new installation, the Trane BAYLOAM105A includes a liquid line temperature sensor, ambient sensor, and a solid-state relay (SSR) for precise motor control. It is important to note that this head pressure control kit is intended for use with PSC outdoor fan motors and requires the presence of a compressor crankcase heater and a non-bleed TXV for proper operation. The kit allows for easy integration into existing control boxes using the provided universal brackets and wiring harnesses, facilitating quick setup for high-reliability commercial or residential cooling requirements in temperate climates.
Key Benefits for HVAC Contractors:- Enhanced Compressor Protection: Maintains optimal head pressure to ensure proper oil return and prevent liquid slugging during low ambient cooling cycles.
- Broad Compatibility: Tailored for Trane packaged cooling systems and heat pumps, including models like the 4WCZ and 4DCY series.
- Complete Professional Kit: Includes the control board, sensors, thermal grease, and wiring harnesses required for a field-ready installation.
- Durable Solid-State Design: Features an SSR for reliable switching of the outdoor fan motor, minimizing mechanical wear compared to traditional pressure switches.
- Advanced Logic: Utilizes both ambient and liquid line inputs to fine-tune fan cycling for maximum system efficiency.
- Can this kit be used on systems with ECM outdoor motors? No, the Trane BAYLOAM105A is specifically designed for use with standard induction (PSC) fan motors.
- Does this require a crankcase heater? Yes, per manufacturer specifications, a crankcase heater must be installed alongside the low ambient kit to protect the compressor from refrigerant migration.
- Where is the liquid line sensor typically mounted? The sensor should be clamped to the liquid line above the TXV and wrapped with the provided insulating tape for accurate temperature sensing.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
