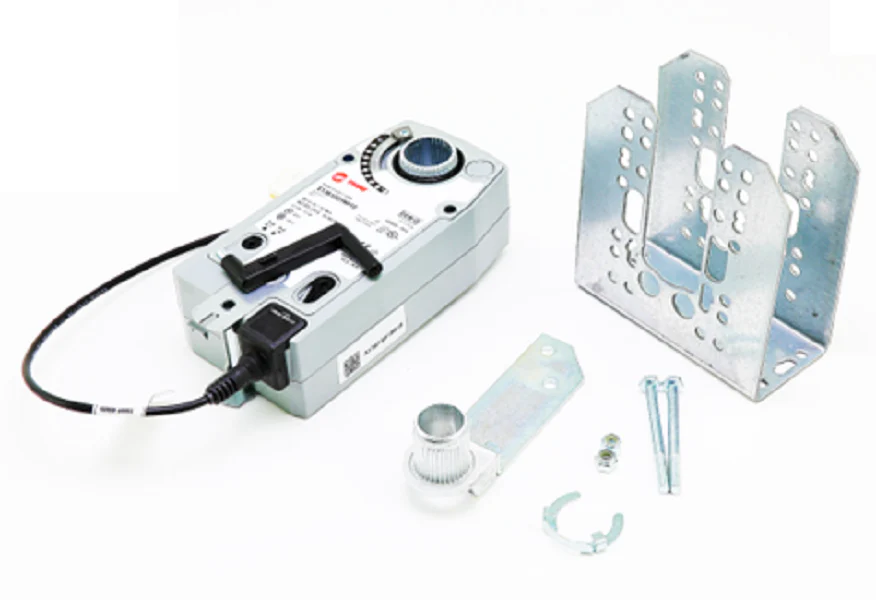

Trane ACT0711 Damper Actuator
The Trane ACT0711 is a commercial-grade 24V spring return damper actuator designed for modulated airflow control in heavy-duty HVACR systems. Built for direct-coupled mounting, this proportional damper actuator receives a 2/10 VDC control signal to provide precise positioning, ensuring accurate air distribution across heating, cooling, and ventilation zones. With a robust 25 lb-in torque capacity and a standard 90-degree mechanical stroke, the ACT0711 provides the mechanical force necessary to overcome static pressure in various duct configurations.
Engineered for mission-critical reliability, this unit features a mechanical spring return (S/R) fail-safe, which automatically drives the damper to its "home" position during a power loss—critical for protecting coils or maintaining safety sequences. The Trane ACT0711 is a verified replacement for OPR0143 and is frequently utilized in Trane SAHLF20XXA and SAHLF20XXE air handlers. This modulating HVAC actuator includes necessary mounting hardware, such as a crank arm and bracket, to facilitate field installation or OEM retrofits in commercial air handling units.
Key Benefits
- Precise Modulation: Responds to 2/10 VDC inputs for granular control of airflow volume.
- Fail-Safe Security: Integrated spring return ensures dampers reach the designated safety position upon loss of 24VAC power.
- High Torque Performance: Delivers 25 lb-in of torque to eliminate sticking in large-scale damper assemblies.
- Direct Replacement Logic: Specifically designed to replace legacy OPR0143 units without necessitating control panel reconfiguration.
- Extended Service Life: Industrial-grade housing and internal gearing optimized for high-cycle applications.
Common Questions
What is the primary function of the 2-10VDC signal?
The signal allows the field controller to command the actuator to specific positions rather than simple open/closed states. This modulation is vital for maintaining consistent static pressure and meeting precise CFM requirements.
Can this actuator be used in both fail-open and fail-closed setups?
Yes, the spring return orientation is typically determined by the mounting side on the damper shaft, allowing for flexible fail-safe piping or ventilation sequences.
Does this unit require a specific mounting bracket?
The ACT0711 includes a standard mounting bracket and crank arm assembly compatible with most Trane-specific air handler damper linkages.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
