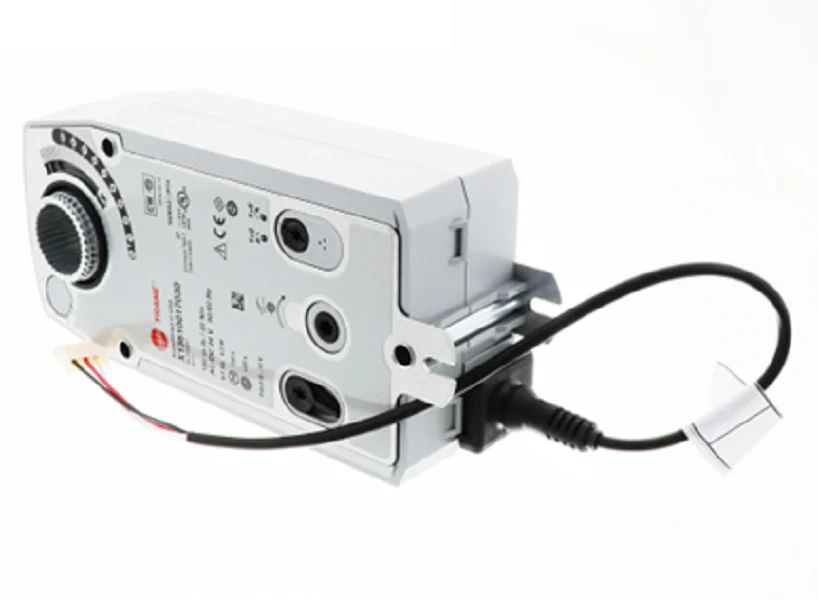

Trane ACT0697 Actuator
The Trane ACT0697 Actuator is a high-torque, proportional control solution engineered for demanding commercial and industrial air handling applications. This 24V spring return actuator utilizes a precise 2-10VDC control signal to modulate dampers and valves, ensuring exact airflow management and optimal pressure control within the building envelope. With a robust 180 in-lb torque rating, the ACT0697 (also identified as ACT00697) is designed to handle large dampers without slipping or loss of position. In the event of secondary power loss, the mechanical spring return fail-safe automatically retracts the damper to its home position, preventing equipment damage and maintaining system safety. This OEM Trane replacement part integrates seamlessly with existing building automation systems (BAS), providing reliable feedback and positioning accuracy for veteran technicians who demand zero-tolerance performance in critical HVACR environments.
Key Benefits for Contactors- Fail-Safe Protection: Mechanical spring return ensures dampers return to a safe state during power interruptions.
- Precise Modulation: Responds to 2-10VDC signals for fine-tuned environmental control and energy efficiency.
- High Torque Capacity: Delivers 180 in-lb of force, suitable for multi-section dampers and heavy-duty valves.
- OEM Compatibility: Direct replacement for Trane ACT00697, ensuring exact physical and electrical fitment.
- Durable Construction: Industrial-grade housing designed to withstand the thermal cycling of air handler units.
Is the ACT0697 compatible with 0-10VDC control systems?
This model is specifically calibrated for a 2-10VDC signal range. While it can operate in many proportional systems, ensure your controller is scaled to 2-10VDC to maintain accurate positioning feedback.
Can this actuator be used for both damper and valve applications?
Yes, the Trane ACT0697 is versatile enough for rotary damper shafts and compatible valve linkages, provided the 180 in-lb torque requirement is met.
What is the difference between ACT0697 and ACT00697?
These are functionally identical. The ACT00697 is the updated manufacturer part number, retaining the same electrical specs and spring return functionality.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $607.78
-65%$607.78
$212.72Trane ACT0697 Actuator
The Trane ACT0697 Actuator is a high-torque, proportional control solution engineered for demanding commercial and industrial air handling applications. This 24V spring return actuator utilizes a precise 2-10VDC control signal to modulate dampers and valves, ensuring exact airflow management and optimal pressure control within the building envelope. With a robust 180 in-lb torque rating, the ACT0697 (also identified as ACT00697) is designed to handle large dampers without slipping or loss of position. In the event of secondary power loss, the mechanical spring return fail-safe automatically retracts the damper to its home position, preventing equipment damage and maintaining system safety. This OEM Trane replacement part integrates seamlessly with existing building automation systems (BAS), providing reliable feedback and positioning accuracy for veteran technicians who demand zero-tolerance performance in critical HVACR environments.
Key Benefits for Contactors- Fail-Safe Protection: Mechanical spring return ensures dampers return to a safe state during power interruptions.
- Precise Modulation: Responds to 2-10VDC signals for fine-tuned environmental control and energy efficiency.
- High Torque Capacity: Delivers 180 in-lb of force, suitable for multi-section dampers and heavy-duty valves.
- OEM Compatibility: Direct replacement for Trane ACT00697, ensuring exact physical and electrical fitment.
- Durable Construction: Industrial-grade housing designed to withstand the thermal cycling of air handler units.
Is the ACT0697 compatible with 0-10VDC control systems?
This model is specifically calibrated for a 2-10VDC signal range. While it can operate in many proportional systems, ensure your controller is scaled to 2-10VDC to maintain accurate positioning feedback.
Can this actuator be used for both damper and valve applications?
Yes, the Trane ACT0697 is versatile enough for rotary damper shafts and compatible valve linkages, provided the 180 in-lb torque requirement is met.
What is the difference between ACT0697 and ACT00697?
These are functionally identical. The ACT00697 is the updated manufacturer part number, retaining the same electrical specs and spring return functionality.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
