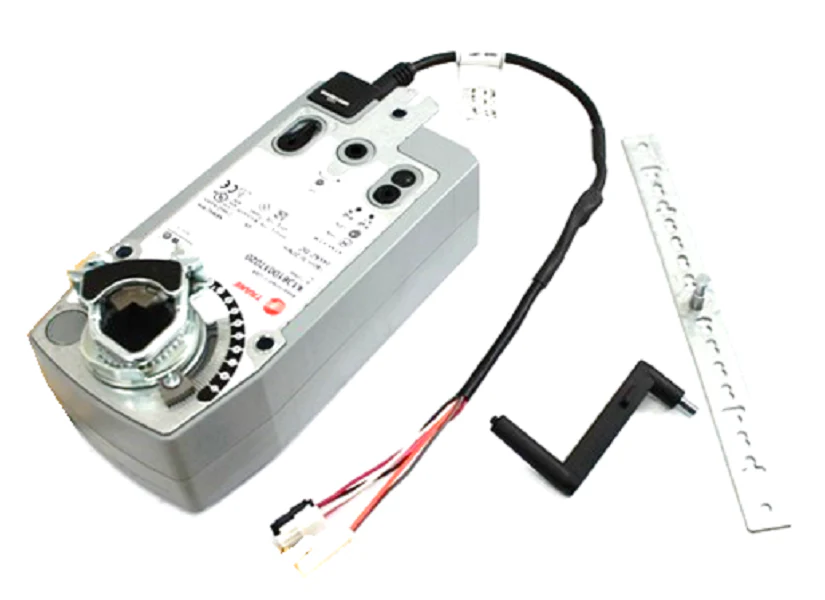

Trane ACT0696 Actuator
The Trane ACT0696 is a professional-grade spring return rotary actuator engineered for high-torque HVAC applications requiring failsafe operation. Delivering 133 in-lbs of torque at 24VAC, this unit is designed to drive dampers and control valves to their safety position upon power loss. With a precise 90-degree rotation angle, it offers the exact modulation necessary for maintaining optimal airflow in commercial VAV systems, air handlers, and cooling towers.
Built for the field, the ACT0696 actuator serves as a direct OEM replacement for legacy components, specifically the Trane OPR0030 vane operator. Its rugged construction ensures long-term reliability in demanding environments where plastic-geared alternatives often fail. For contractors performing a retrofit or a breakdown repair, this 24V HVAC actuator provides the mechanical force needed to overcome high static pressure while ensuring a tight seal for energy-efficient damper control.
Key Benefits
- Mechanical Failsafe: Integrated spring return mechanism ensures dampers close or open during power outages, protecting coils from freezing.
- High Torque Output: Provides 133 in-lbs to manage large damper surfaces and heavy valve assemblies without stalling.
- Direct Compatibility: Replaces obsolete OPR0030 models, streamlining the service call without requiring complex mounting modifications.
- Precision Modulation: Optimized for 90-degree rotary applications to achieve accurate temperature and ventilation control.
Common Questions
What is the primary function of the spring return in the ACT0696?
The spring return is a safety feature that uses stored mechanical energy to return the actuator to its "home" position (either fully open or fully closed) immediately if the 24V power supply is interrupted.
Can this actuator replace the Trane ACT00696?
Yes, the ACT0696 is functionally identical to the Trane ACT00696; both are technical specifications for the same 133 in-lb rotary unit used in many Trane RTUs and air handling systems.
What should I check if the actuator is receiving power but not turning?
First, verify that the damper linkage is not binding or obstructed. Then, confirm the 24V supply is stable under load. If the internal gearing is stripped or the motor is burnt out, the unit must be replaced as these are sealed assemblies.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
