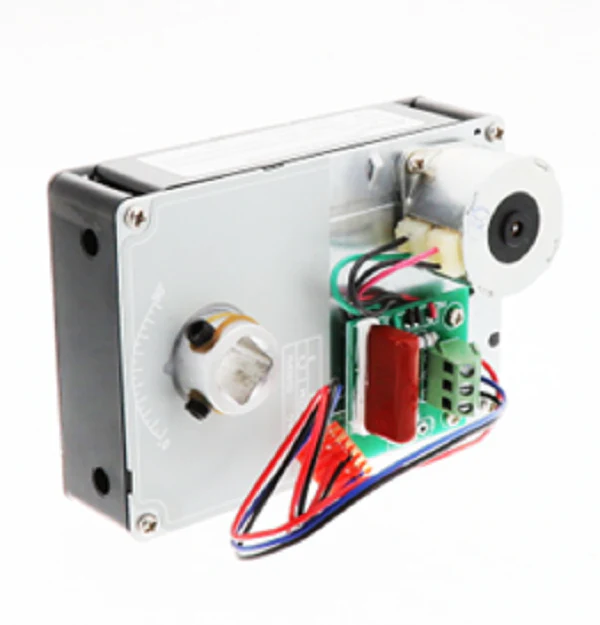

Trane ACT0471 Actuator
The Trane ACT0471 Actuator is a high-performance rotary NSR actuator designed for critical HVAC damper control in commercial and industrial air handling systems. This secondary-market essential, often cross-referenced as Trane ACT00471, features a non-spring return (NSR) mechanism, ensuring that the damper remains in its last commanded position during a power loss to prevent rapid system fluctuations. Engineered for 24V direct-coupled applications, this electronic actuator provides precise modulation for airflow regulation in Trane IntelliPak and modular air handler units. Its robust internal gear train is built to withstand high-cycle applications without slipping, offering technicians a reliable solution for maintaining building automation system (BAS) integrity. For field installation, this unit supports a variety of shaft diameters with its self-centering adapter, reducing balancing time and ensuring a secure mechanical connection for long-term operational uptime.
Key Benefits- Fail-Last Position: The non-spring return design maintains setpoint stability during power interruptions, preventing unwanted outdoor air intake.
- OEM Compatibility: Specifically calibrated for Trane HVAC systems, ensuring seamless 24V signal communication without the need for additional signal conditioners.
- Precise Modulation: Provides accurate rotary control for dampers, allowing for granular adjustment of mixed-air temperatures and ventilation rates.
- Durable Construction: Built with industrial-grade housing and gear components to resist thermal stress and mechanical wear in rigorous mechanical rooms.
- Efficient Field Retrofit: The compact footprint and universal mounting bracket simplify the replacement of legacy damper motors in tight plenum spaces.
Is the Trane ACT0471 compatible with 120V circuits?
No, this is a 24V HVAC actuator. Applying line voltage will cause immediate failure of the internal control board and void the ability to return the part.
What happens to the damper position if the power fails?
As an NSR actuator, the unit will remain in its current position. If your application requires a fail-safe open or closed position, you should specify a spring-return model instead.
Can I use this for both globe valves and dampers?
The ACT0471 is primarily a rotary electronic actuator designed for damper shafts. While some Trane actuators share similar internals, always verify the linkage kit compatibility before attempting valve mounting.
Item is Non Cancelable / Non Returnable
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $119.98
-65%$119.98
$41.99Trane ACT0471 Actuator
The Trane ACT0471 Actuator is a high-performance rotary NSR actuator designed for critical HVAC damper control in commercial and industrial air handling systems. This secondary-market essential, often cross-referenced as Trane ACT00471, features a non-spring return (NSR) mechanism, ensuring that the damper remains in its last commanded position during a power loss to prevent rapid system fluctuations. Engineered for 24V direct-coupled applications, this electronic actuator provides precise modulation for airflow regulation in Trane IntelliPak and modular air handler units. Its robust internal gear train is built to withstand high-cycle applications without slipping, offering technicians a reliable solution for maintaining building automation system (BAS) integrity. For field installation, this unit supports a variety of shaft diameters with its self-centering adapter, reducing balancing time and ensuring a secure mechanical connection for long-term operational uptime.
Key Benefits- Fail-Last Position: The non-spring return design maintains setpoint stability during power interruptions, preventing unwanted outdoor air intake.
- OEM Compatibility: Specifically calibrated for Trane HVAC systems, ensuring seamless 24V signal communication without the need for additional signal conditioners.
- Precise Modulation: Provides accurate rotary control for dampers, allowing for granular adjustment of mixed-air temperatures and ventilation rates.
- Durable Construction: Built with industrial-grade housing and gear components to resist thermal stress and mechanical wear in rigorous mechanical rooms.
- Efficient Field Retrofit: The compact footprint and universal mounting bracket simplify the replacement of legacy damper motors in tight plenum spaces.
Is the Trane ACT0471 compatible with 120V circuits?
No, this is a 24V HVAC actuator. Applying line voltage will cause immediate failure of the internal control board and void the ability to return the part.
What happens to the damper position if the power fails?
As an NSR actuator, the unit will remain in its current position. If your application requires a fail-safe open or closed position, you should specify a spring-return model instead.
Can I use this for both globe valves and dampers?
The ACT0471 is primarily a rotary electronic actuator designed for damper shafts. While some Trane actuators share similar internals, always verify the linkage kit compatibility before attempting valve mounting.
Item is Non Cancelable / Non Returnable
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
