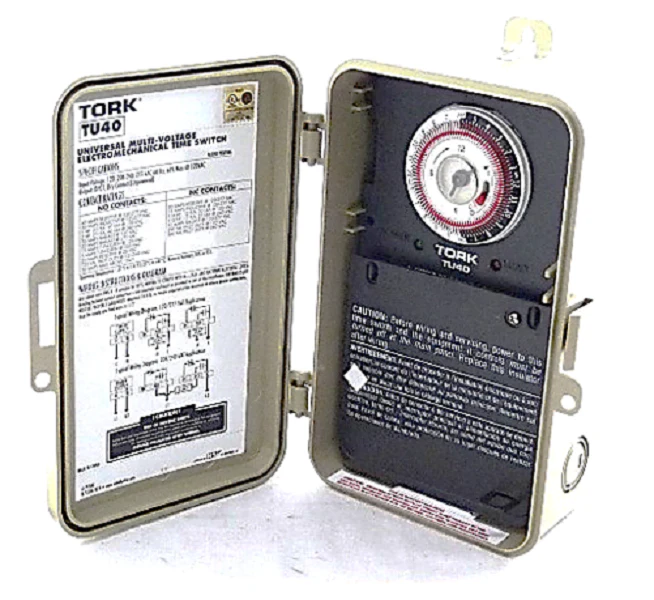

Tork Timers TU40 Timer
The Tork TU40 is a versatile 24-hour electromechanical timer engineered to handle heavy-duty multi-voltage applications across 120V, 208-240V, and 277V circuits without the need for DIP switch adjustments. For technicians managing commercial HVACR systems, water heaters, or pool pumps, the TU40 universal 24-hour time switch provides a reliable 40A DPDT contact rating that is easily field-configurable for SPST, SPDT, and DPST wiring requirements. The unit features 96 captive trippers, allowing for a 15-minute minimum switching interval and up to 48 daily operations, making it an essential component for energy management and cycling loads like aeration fans or building lighting.
Housed in a rugged NEMA 3R plastic indoor/outdoor enclosure, the TU40 is built to withstand extreme operating temperatures from -31°F to 116°F. It includes a manual ON/OFF/AUTO override switch and independent LED indicators for power and load status, simplifying troubleshooting at the job site. With a 40-amp resistive rating and high motor load capacity (up to 2HP at 240VAC), this multi-tasking timer eliminates the need for carrying multiple voltage-specific SKUs on the truck, ensuring you have the right part for automated light control or heavy machinery scheduling every time.
Key Benefits- Universal Voltage Compatibility: Automatic input detection for 120/208/240/277VAC simplifies stock and installation.
- Heavy-Duty Load Handling: Rated for 40A general purpose and 2HP motor loads, ideal for demanding HVACR equipment.
- Granular Scheduling: 15-minute increments via captive trippers ensure precise cycling without the risk of lost parts.
- Flexible Wiring Configurations: 4-in-1 DPDT contacts accommodate various circuit designs, from simple SPST to complex DPST/SPDT setups.
- Contractor-Focused Design: Features wide terminal range (#8 - #18 AWG) and inclusive knockouts for faster rough-in.
How do I set the clock on the TU40?
Rotate the outer 24-hour dial clockwise until the current time aligns with the indicator arrow. The black section represents 6:00 PM to 6:00 AM, while the white section indicates daytime hours.
Can this timer replace a Paragon 42011-00 or P101?
Yes, the TU40 is a direct universal replacement for many common mechanical timers, including older Paragon and Intermatic models, due to its multi-voltage detection and DPDT switch configuration.
Is this unit suitable for outdoor pool pumps?
Correct. The NEMA 3R polycarbonate enclosure is designed for outdoor applications and holds up well against environmental exposure, provided proper conduit fittings are used for the knockouts.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
