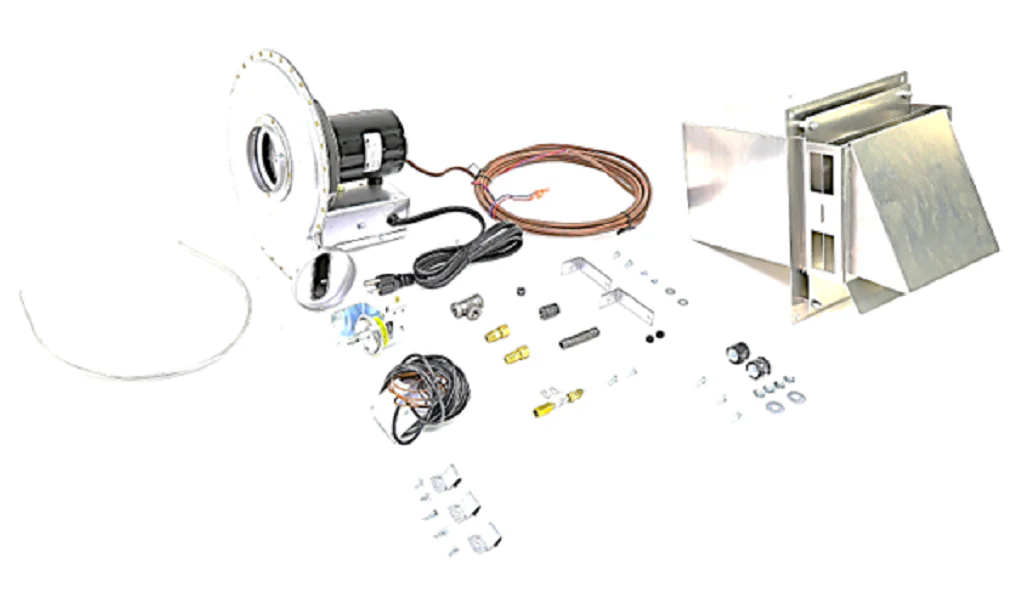

Tjernlund Products VP-2F Vent System
The Tjernlund VP-2F Side Wall Vent System is a dedicated power venter solution designed for millivolt gas water heaters and light commercial boilers rated up to 60,000 BTU/hr. Engineered for high-performance side wall termination, this sidewall vent kit allows for the installation of gas-fired equipment in structures where traditional chimneys are deteriorated or absent. Featuring a 115V, 3000 RPM motor and a factory pre-wired electrical box, the system enables mechanical draft venting up to 75 equivalent feet, providing essential flexibility for building retrofits or electric-to-gas conversions.
Built for reliability, the VP-2F vent package includes a linear limit spillage sensing switch and a gas pressure switch to interlock the burner with the venting cycle. This gas water heater power vent utilizes a 45-second post-purge relay to clear residual flue gases, preventing heat buildup and condensation within the vent pipe. The 3-inch inlet/outlet configuration ensures compatibility with standard Type B vent piping, while the compact design supports horizontal mounting to minimize motor bearing wear and optimize flue gas velocity.
Key Benefits- Compatible with any natural gas or LP millivolt water heater up to 60,000 BTUs.
- Supports long vent runs reaching up to 75 equivalent feet from the exterior wall.
- Factory pre-wired control system allows for streamlined installation without 24V wiring complexity.
- Integrated linear limit switch and pressure switch ensure safe burner shutdown in the event of a venting malfunction.
- Equipped with an aluminum vent hood and galvanized steel housing for corrosion resistance in varied climates.
How do I wire the VP-2F to a millivolt gas valve? The kit includes a JA1 thermocouple junction adapter. You unscrew the existing thermocouple from the gas valve, thread in the adapter, then screw the thermocouple back into the adapter. This allows the linear limit switch to disrupt the millivolt circuit and close the gas valve if spillage is detected.
Can I use this for appliances larger than 60,000 BTU? For equipment exceeding 60,000 BTU/hr or those with a 4-inch flue outlet, the Tjernlund VP-3F is the appropriate model. The VP-2F is strictly calibrated for systems up to 60,000 BTU.
What are the mounting requirements for the power venter motor? To prevent premature motor failure and ensure proper lubrication of the bearings, the motor shaft must be mounted in a horizontal orientation. Single-wall vent piping requires at least six inches of clearance from combustible materials.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $668.99
-65%$668.99
$234.15Tjernlund Products VP-2F Vent System
The Tjernlund VP-2F Side Wall Vent System is a dedicated power venter solution designed for millivolt gas water heaters and light commercial boilers rated up to 60,000 BTU/hr. Engineered for high-performance side wall termination, this sidewall vent kit allows for the installation of gas-fired equipment in structures where traditional chimneys are deteriorated or absent. Featuring a 115V, 3000 RPM motor and a factory pre-wired electrical box, the system enables mechanical draft venting up to 75 equivalent feet, providing essential flexibility for building retrofits or electric-to-gas conversions.
Built for reliability, the VP-2F vent package includes a linear limit spillage sensing switch and a gas pressure switch to interlock the burner with the venting cycle. This gas water heater power vent utilizes a 45-second post-purge relay to clear residual flue gases, preventing heat buildup and condensation within the vent pipe. The 3-inch inlet/outlet configuration ensures compatibility with standard Type B vent piping, while the compact design supports horizontal mounting to minimize motor bearing wear and optimize flue gas velocity.
Key Benefits- Compatible with any natural gas or LP millivolt water heater up to 60,000 BTUs.
- Supports long vent runs reaching up to 75 equivalent feet from the exterior wall.
- Factory pre-wired control system allows for streamlined installation without 24V wiring complexity.
- Integrated linear limit switch and pressure switch ensure safe burner shutdown in the event of a venting malfunction.
- Equipped with an aluminum vent hood and galvanized steel housing for corrosion resistance in varied climates.
How do I wire the VP-2F to a millivolt gas valve? The kit includes a JA1 thermocouple junction adapter. You unscrew the existing thermocouple from the gas valve, thread in the adapter, then screw the thermocouple back into the adapter. This allows the linear limit switch to disrupt the millivolt circuit and close the gas valve if spillage is detected.
Can I use this for appliances larger than 60,000 BTU? For equipment exceeding 60,000 BTU/hr or those with a 4-inch flue outlet, the Tjernlund VP-3F is the appropriate model. The VP-2F is strictly calibrated for systems up to 60,000 BTU.
What are the mounting requirements for the power venter motor? To prevent premature motor failure and ensure proper lubrication of the bearings, the motor shaft must be mounted in a horizontal orientation. Single-wall vent piping requires at least six inches of clearance from combustible materials.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
