Tjernlund Products AS1

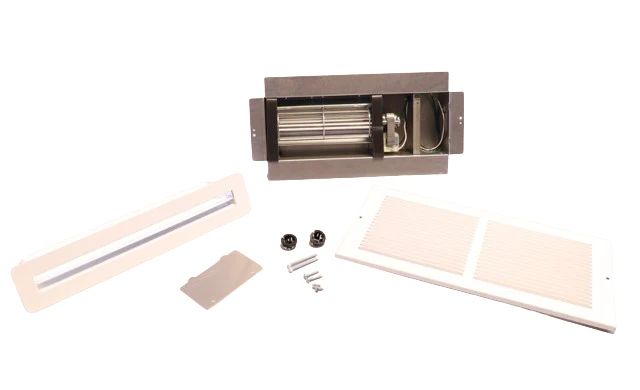

The Tjernlund AS1 AireShare Room-to-Room Ventilator is a professional-grade air transfer fan designed to redistribute conditioned air across interior wall partitions. Engineered for hardwired 120 VAC applications, this unit effectively balances temperatures between rooms by utilizing the existing wall cavity. It is an essential solution for contractors looking to improve the efficiency of ductless mini-split systems, wood stoves, or space heaters without the need for additional ductwork. By moving air at 75 CFM with a low-profile cross-flow blower, the AS1 ensures consistent air exchange in spaces up to 150 square feet.
Built with durability in mind, the Tjernlund AS1 features a vibration-isolated motor and a 22-gauge aluminized steel intake grille, operating at a quiet 1.5 Sones. The system’s design allows for staggered mounting of the intake and discharge, effectively blocking light and minimizing sound transfer between rooms. Installers can configure the blower and AD1 diffuser high or low on the wall to pull either cool air from the floor or warm air from the ceiling. This room-to-room fan is ETL-listed and fits standard 16-inch on-center stud bays, requiring a 120-volt wall switch or thermostat for operation.
Key Benefits- Efficient Thermal Transfer: Facilitates a temperature change of approximately 3°F per hour to eliminate hot or cold spots.
- Quiet Operation: The factory-balanced tangential blower maintains a low-decibel profile suitable for bedrooms and offices.
- Discreet Installation: No exposed power cords; the unit integrates seamlessly into 3.5-inch wall cavities for a flush finish.
- Flexible Mounting: Compatible with both vertical and horizontal plenum directions to optimize airflow based on heat source location.
- Rugged Construction: Features a high-quality C-frame motor and powder-coated grilles that can be repainted to match room decor.
- Can this fan be installed in a fire-rated wall? No, the AS1 is not rated for installation in firewalls or exterior walls.
- Does this unit include a built-in switch? This is the hardwired model and requires an external 120V wall switch or thermostat to function.
- Is it compatible with metal studs? Yes, but installers must seal or plug all knockouts and mount the diffuser within 3 inches of the blower for optimal performance.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
