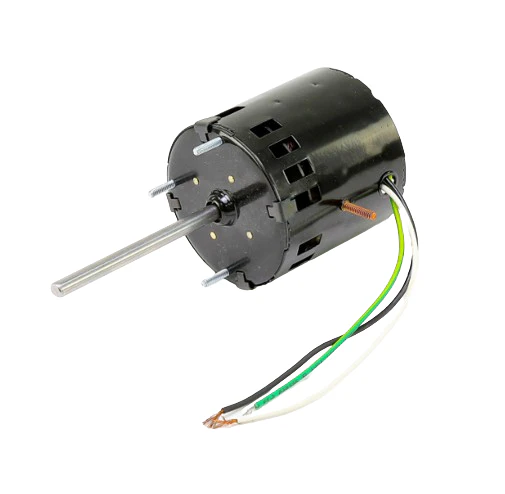

Tjernlund Products 950-3022 Motor
When you're servicing vertical vent systems or air intake setups, the Tjernlund Products 950-3022 Motor is the original equipment standard for maintaining proper static pressure. This 115v 1600rpm Motor kit is a precision-engineered shaded pole motor, drawing a consistent 1.0 Amp under full load. Designed with a 3.3-inch frame, it features a 4.09-inch shaft with a 0.265-inch flat to ensure a secure, slip-free connection to the fan hub. As a veteran-grade draft inducer replacement motor, this assembly supersedes the old 880-0112 part number and is built for clockwise (CW) rotation from the shaft end. Whether you are troubleshooting a D-3 in-line draft inducer or a PAI-1/PAI-2 series combustion air fan, this motor provides the exact torque and thermal stability required for high-cycle industrial and residential HVACR applications, preventing the backdrafting and pressure switch errors common with generic "will-fit" alternatives.
Key Benefits:- Direct OEM Compatibility: Specifically designed for the Tjernlund D-3, AD-1, and PAI-2G combustion air intake fan units.
- Heavy-Duty Construction: Features oil-impregnated sleeve bearings and a high-efficiency single-phase power design for 60Hz operation.
- Complete Replacement Kit: Includes the necessary mounting hardware and instructions to streamline field installation for contractors.
- Reliable Performance: Delivers a consistent 1/12 HP output to sustain the required airflow velocity in chimney-top and side-wall venting configurations.
What is the shaft rotation direction for the Tjernlund 950-3022?
This motor is engineered for clockwise (CW) rotation when viewed from the shaft end, which is critical for the aerodynamic performance of D-3 and AD-1 inducer fans.
Does this kit replace the old 880-0112 motor?
Yes, the 950-3022 is the current factory-authorized replacement that supersedes and improves upon the legacy 880-0112 part number.
What models are compatible with this motor?
This motor is the primary service part for the Tjernlund D-3 in-line draft inducer, AD-1 draft inducer, and the entire series of PAI-1G, PAI-2G, and PAI-2GT combustion air fans.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
