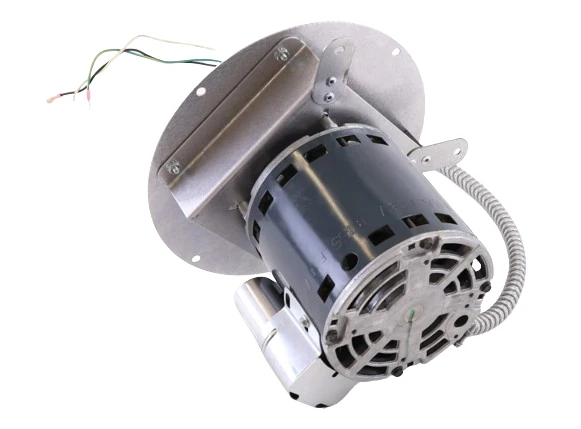

Tjernlund Products 950-1022 Motor Kit
The Tjernlund Products 950-1022 Motor Kit is a field-proven OEM replacement motor designed specifically for the Tjernlund HS-3 Power Venter. This 115v 1/5hp 1700rpm motor kit ensures your venting system maintains proper draft and static pressure for safe combustion gas expulsion. Built for the rigors of mechanical draft applications, this PSC (Permanent Split Capacitor) motor features a 42-frame design and 2.5 Full Load Amps (FLA) for high-torque startups and consistent airflow. As a critical component for side-wall venting, it eliminates the need for tall chimneys while providing superior durability in high-heat environments. Each Tjernlund draft inducer motor is engineered for a precision fit, featuring oil holes that must face upward during installation to ensure bearing longevity. This comprehensive venter motor replacement is the standard choice for HVAC professionals maintaining high-efficiency residential or commercial venting systems.
Key Benefits
- Direct OEM Compatibility: Specifically engineered to fit Tjernlund HS-3 housing without modifications.
- Precision Performance: Features a 1700 RPM operating speed and 1/5 HP to maintain optimal vent pipe draft.
- Heavy-Duty Construction: Industrial-grade 115V motor designed for continuous duty cycles in specialized HVAC venting.
- Full Installation Kit: Includes the essential components (motor, fan prover, and wheel) to restore total system functionality.
- Field Serviceable: Designed with accessible lubrication ports to extend service life in professional grade mechanical draft setups.
Common Questions
Is this motor compatible with older HS-3 models?
Yes, the 950-1022 is designed for the Tjernlund HS-3. For "old style" units (pre-12/88), ensure the conduit whip is properly integrated or use the provided hardware to updated junction box connections as per the provided manufacturer specs.
What is the correct orientation for installation?
When mounting the motor to the power venter housing, verify the oil holes are facing up. This ensures the 1/5 HP motor remains properly lubricated during its duty cycle.
How often should I service this motor?
For peak HVAC ventilation performance, lubricate the motor every three months during the peak heating season using no more than three drops of SAE 20 oil.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $492.43
-65%$492.43
$172.35Tjernlund Products 950-1022 Motor Kit
