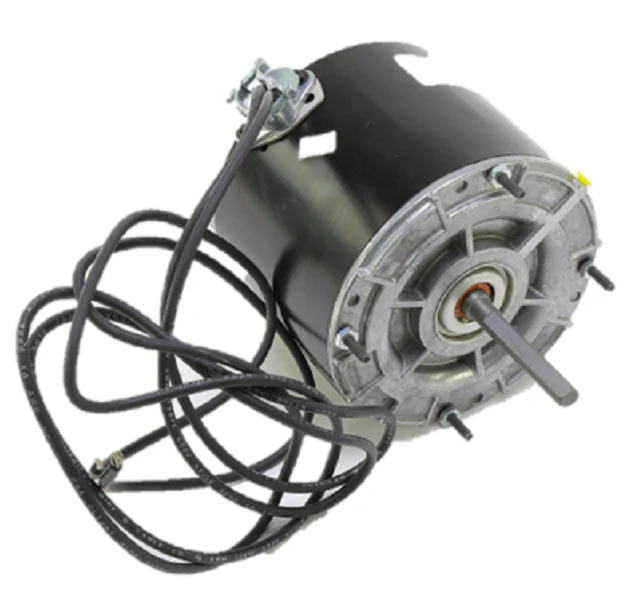

Tjernlund Products 950-0800 Motor
The Tjernlund Products 950-0800 Motor is a high-performance OEM replacement motor engineered specifically for technical HVAC ventilation applications. Operating at 460V with a power rating of 1/15 HP, this unit is designed to drive head cooling fans and draft inducer assemblies with precision. Running at a fixed speed of 1550 RPM, the motor provides the necessary torque to maintain consistent static pressure and airflow within industrial draft systems and rooftop draft inducers.
Built for reliability in demanding environments, this PSC motor (Permanent Split Capacitor) supports efficient exhaust and air circulation, ensuring that combustion gases are properly vented. It is frequently utilized in Tjernlund CA-6D4 series units and other industrial equipment requiring a high-voltage, low-horsepower profile. For technicians performing field maintenance, this motor ensures a direct-fit replacement to restore system performance without the need for extensive structural modifications.
Key Benefits- Optimized Performance: Fixed 1550 RPM speed provides consistent air movement for cooling and draft induction.
- High-Voltage Compatibility: Specifically rated for 460V AC industrial power systems.
- Reliable PSC Design: Permanent Split Capacitor configuration offers improved efficiency and lower operating costs.
- Direct OEM Fit: Engineered as a precision match for Tjernlund Products equipment, including the CA-6D4 and BR-series.
- Industrial Durability: Robust construction designed to withstand the thermal stress of ventilation and exhaust cycles.
What equipment is compatible with the Tjernlund 950-0800 motor?
This motor is primarily used in Tjernlund CA-6D4 and CA-6E4 head cooling fan assemblies, as well as specific BR-series cooling systems and in-line draft inducer kits that require 460V power.
Can I use this 460V motor as a replacement for a 115V or 230V unit?
No. This motor is strictly rated for 460V 1-phase operation. Attempting to install it in a lower voltage circuit will result in failure and equipment damage.
Does this motor require specialized lubrication?
Standard maintenance typically involves oiling every three months during active heating seasons using no more than three drops of SAE 20 oil in the provided oil holes.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
