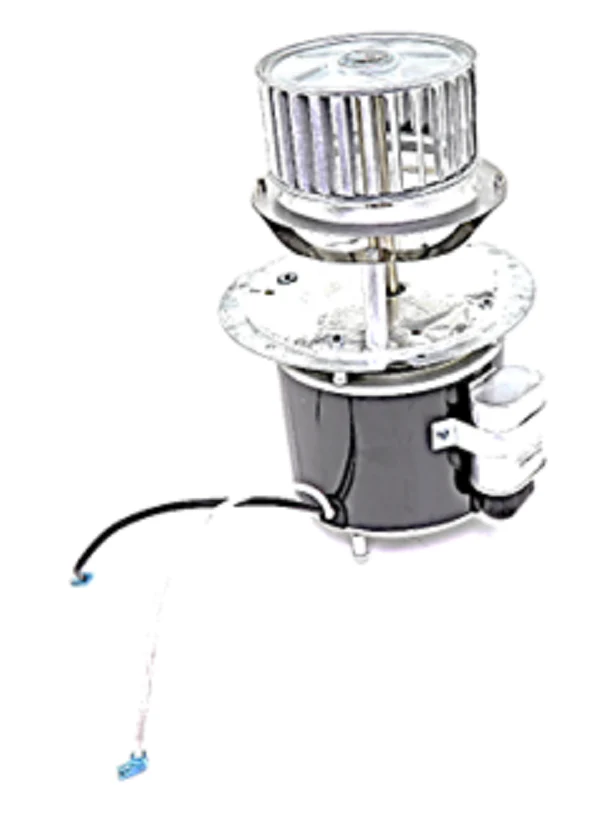

Tjernlund Products 950-0625 Motor/Wheel Assembly
The Tjernlund 950-0625 Motor/Wheel Assembly is the direct replacement component for Tjernlund SS1 side wall vent systems, including SS1, SS1-R, and SS1C models. Engineered for rigorous draft induction, this assembly features a 1/10 HP, single-phase motor operating at 115V and 3450 RPM. As an HVAC veteran, you know side wall power venter repair requires precise alignment; this kit includes a blower wheel with a 5/8" bore and a dedicated gasket to ensure a gas-tight seal at the plenum. It is also compatible with motor number 880-0301. When troubleshooting draft inducer motor replacement, verify the date code on your SideShot units. For those manufactured after date code 9518, this Tjernlund SS1 replacement motor drops directly into the housing. This HVAC draft inducer assembly is essential for restoring proper static pressure and venting efficiency in residential and commercial gas-fired applications where chimney venting is unavailable.
Key Benefits
- Direct Compatibility: Drop-in Tjernlund 950-0625 replacement for SS1, SS1-R, and SS1C series.
- High-Speed Performance: 3450 RPM motor provides the necessary velocity to overcome flue resistance.
- Secure Fit: Precision-machined 5/8" bore blower wheel prevents vibration and shaft slippage.
- Full Kit: Includes the replacement motor, blower wheel, and mounting gasket for professional installations.
Common Questions
Does this assembly include the fan prover?
No, this kit includes the motor, blower wheel, and gasket only. If your UC1 board indicates a fan prover fault (Red LED flashing), you may need to inspect the pressure switch separately.
Is this compatible with older SideShot units?
This 950-0625 assembly is designed for units with date codes after 9518. Units with date codes between 9226 and 9517 may require minor modifications using the original inlet collar.
How do I prevent the squirrel cage from bending during install?
Always grasp the motor casing during insertion into the plenum. Never rest the weight of the assembly on the blower wheel or shaft to avoid misalignment.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
