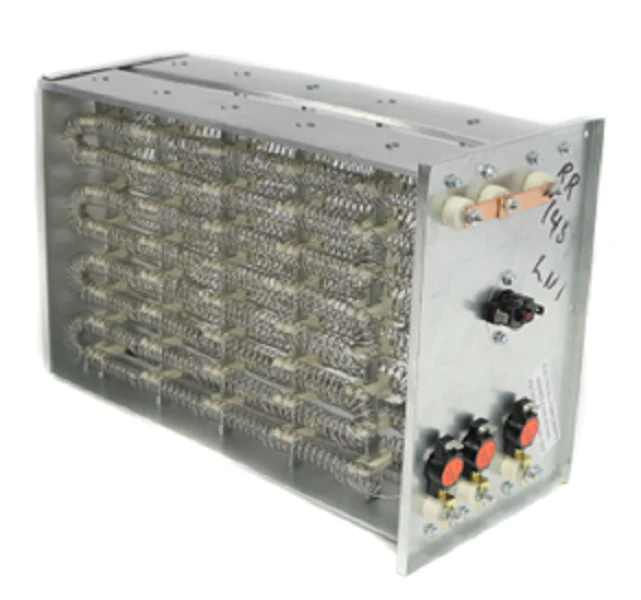

Titus HVAC PESV-3-3RR14E928.0 Heating Rack
The Titus HVAC PESV-3-3RR14E928.0 8kW Replacement Heating Rack is a high-performance VAV electric reheat coil engineered specifically for integration into PESV pressure-independent terminal units. Tailored for commercial and industrial HVAC duct heating systems, this 8kW assembly features an open-coil heating element design that maximizes heat transfer while maintaining a low pressure drop. The configuration minimizes air stratification and eliminates hot spots, mitigating the risk of nuisance tripping during low-airflow conditions. Built with a heavy-gauge steel frame, this replacement heating rack ensures structural integrity within the terminal unit discharge. It utilizes a magnetic contactor for reliable stage cycling and includes automatic reset thermal cutouts for primary protection alongside manual reset secondary limits. Standard safety features such as a positive pressure flow switch ensure the heater only energizes when proper airflow is detected, protecting the unit and downstream ductwork from overheating during commercial HVAC maintenance or system fluctuations.
Key Benefits- Technical Precision: Designed as an OEM replacement heating rack for Titus PESV series, ensuring exact physical and electrical compatibility.
- Thermal Protection: Integrated automatic reset thermal cutouts and manual secondary protection protect the coil and ductwork from excessive temperature rise.
- Airflow Safety: Features a positive pressure flow switch to prevent element energization in "no-flow" or "low-flow" scenarios.
- Durable Construction: Heavy-duty frame and high-grade electric resistance heating elements provide long-term reliability in demanding VAV environments.
- Simplified Access: Single-side access to electric heater controls facilitates quick installation and routine field testing for technicians.
Is this heating rack compatible with pressure-dependent VAV boxes?
This specific rack is engineered for Titus PESV pressure-independent terminal units. While some designs overlap, the PESV-3-3RR14E928.0 relies on the control sequence of PESV units for proper staging and airflow verification.
What is the primary cause of thermal cutout tripping on these 8kW racks?
Nuisance tripping is typically caused by airflow falling below the minimum CFM requirements (calculated as kW ? cfm x 0.0142). Ensure the airflow sensing switch is properly calibrated and duct static pressure is sufficient to close the pressure contacts.
Can this replacement rack be field-converted to a different voltage or phase?
No, this replacement heating rack is factory-configured for specific voltage and phase requirements to match the existing terminal unit electric coil data. Verify your line voltage and phase (e.g., 480V/3PH) before installation.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $442.52
-65%$442.52
$154.88Titus HVAC PESV-3-3RR14E928.0 Heating Rack
