Titus HVAC 10303201 Control Board

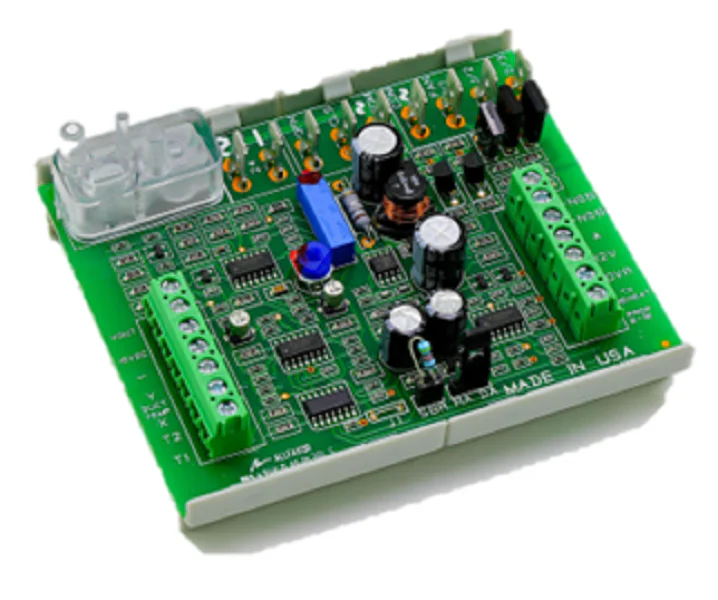

The Titus HVAC 10303201 is a TA1 Analog Control Board engineered for precision air volume control in Titus VAV terminals. As a critical component for single duct air terminal units, this analog electronic controller manages the interface between the thermostat and the primary air damper actuator. It operates on a 24VAC power supply and provides a 0-10VDC or 2-10VDC output signal for modulation based on space demand. This replacement VAV controller is essential for maintaining accurate airflow calibration and pressure-independent operation in legacy pneumatic-to-electronic conversion kits or existing analog systems. Designed for field durability, the 10303201 control board features adjustable minimum and maximum CFM setpoints, ensuring the air distribution system meets specific zone requirements without the complexity of modern DDC programming. For contractors servicing older commercial HVAC systems, this board offers a direct-fit solution to restore HVAC zone control and thermal comfort.
Key Benefits
- Precise Voltage Modulation: Delivers accurate control signals to damper actuators for consistent airflow management.
- Simplified Field Calibration: Features integrated potentiometers for quick adjustment of min/max flow limits without proprietary software.
- System Compatibility: Designed specifically for Titus TA1 Series terminals, ensuring seamless OEM board replacement and electrical integration.
- Robust Analog Circuitry: Built to withstand the thermal cycles of plenum-mounted environments, reducing the frequency of HVAC repair call-backs.
Common Questions
What are the power requirements for the Titus 10303201?
This board requires a standard 24VAC Class 2 transformer. Ensure the transformer is sized correctly to handle both the board and the associated actuator draw.
Can this board be used with digital thermostats?
The 10303201 is designed for analog 0-10VDC or 2-10VDC input signals. If your thermostat provides a digital-only communication protocol, an interface module or a different series controller may be required.
How do I set the CFM limits on this controller?
CFM setpoints are adjusted via the on-board potentiometers using a voltmeter and the manufacturer’s pressure-to-voltage conversion chart located in the terminal unit’s technical manual.
